[7sj80-einschub-101214, 1, --_--]

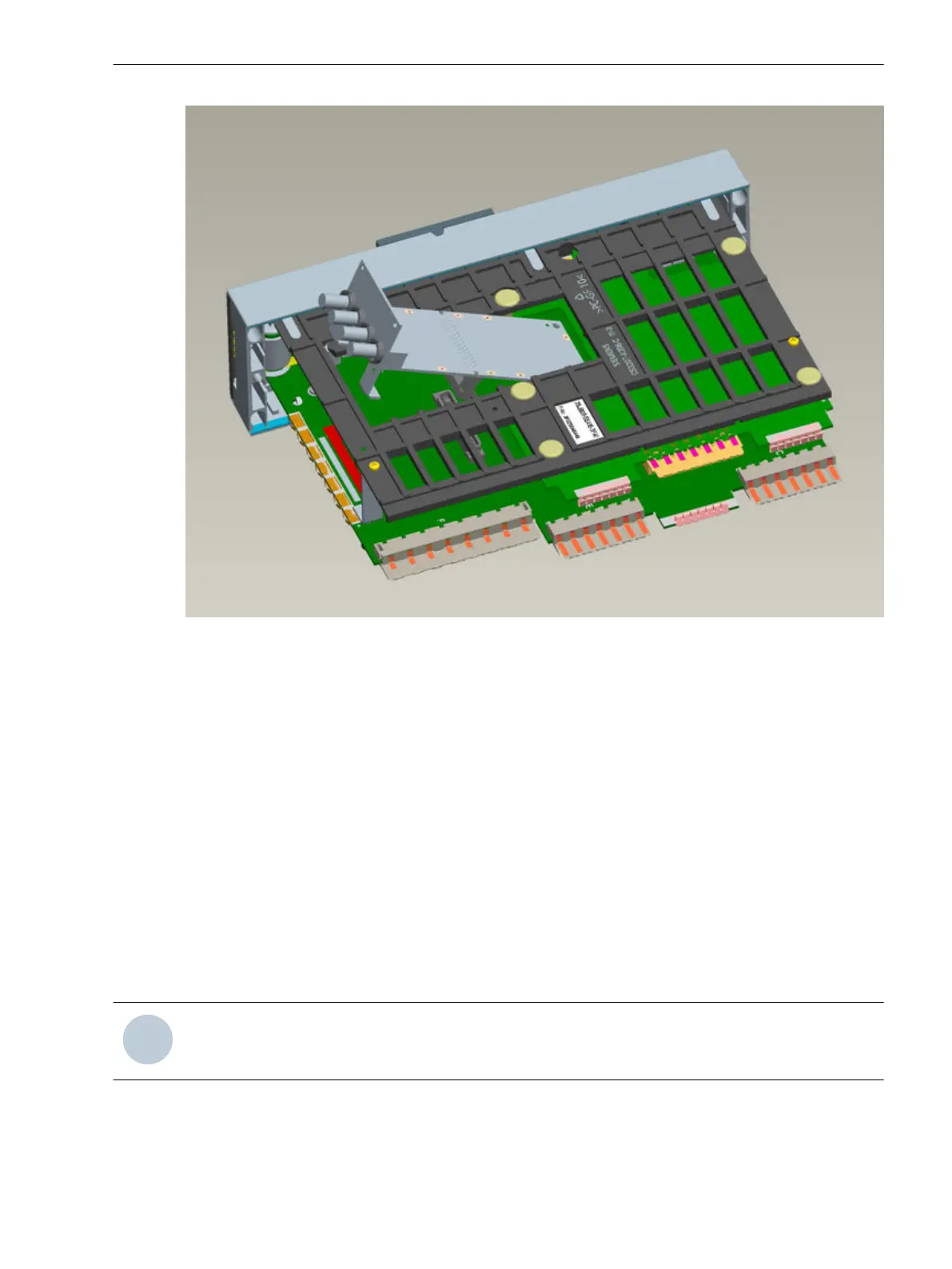

Figure 3-9
Installation of a SIPROTEC 4 communication module
The device can now be reassembled again (see Section Reassembly).
Reassembly
The reassembly of the device is performed in the following steps:
Carefully insert the complete electronics block into the housing. Please observe the following:
The connections of the communication modules point at the bottom of the housing. If there is no communica-
tion module, orient yourself to the connections for the current terminal. These connections are located on the
side of the printed circuit board pointing at the device bottom.
Insert the electronics block into the housing, until the supporting part rests against the front edge of the
housing. Press the left housing wall slightly out and insert the electronics block carefully further into the
housing. When the front edge of the housing and the inside of the front plate touch, center the front plate by
carful lateral movements. This makes sure that the front plate encloses/surrounds the housing. The electronics
block can only be inserted centered up to the end stop.
Fix the front cover to the housing with the two medium screws at the top and bottom of the front cover. The
two covers can be inserted again either now or after the reinstallation of the device. Now install the device in
accordance with the Sections Panel Flush Mounting, Panel Surface Mounting or Cubicle Mounting.
NOTE
Insert the current and voltage terminal blocks again and lock them in place!
3.1.2.5
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SD80, Manual 217
E50417-G1100-C474-A2, Edition 02.2018
