Default Display
A number of pre-defined measured value pages are available depending on the device type. The start page of
the default display appearing after startup of the device can be selected in the device data via parameter 640
Start image DD auswählen.
for the 6-line display of the 7SD80

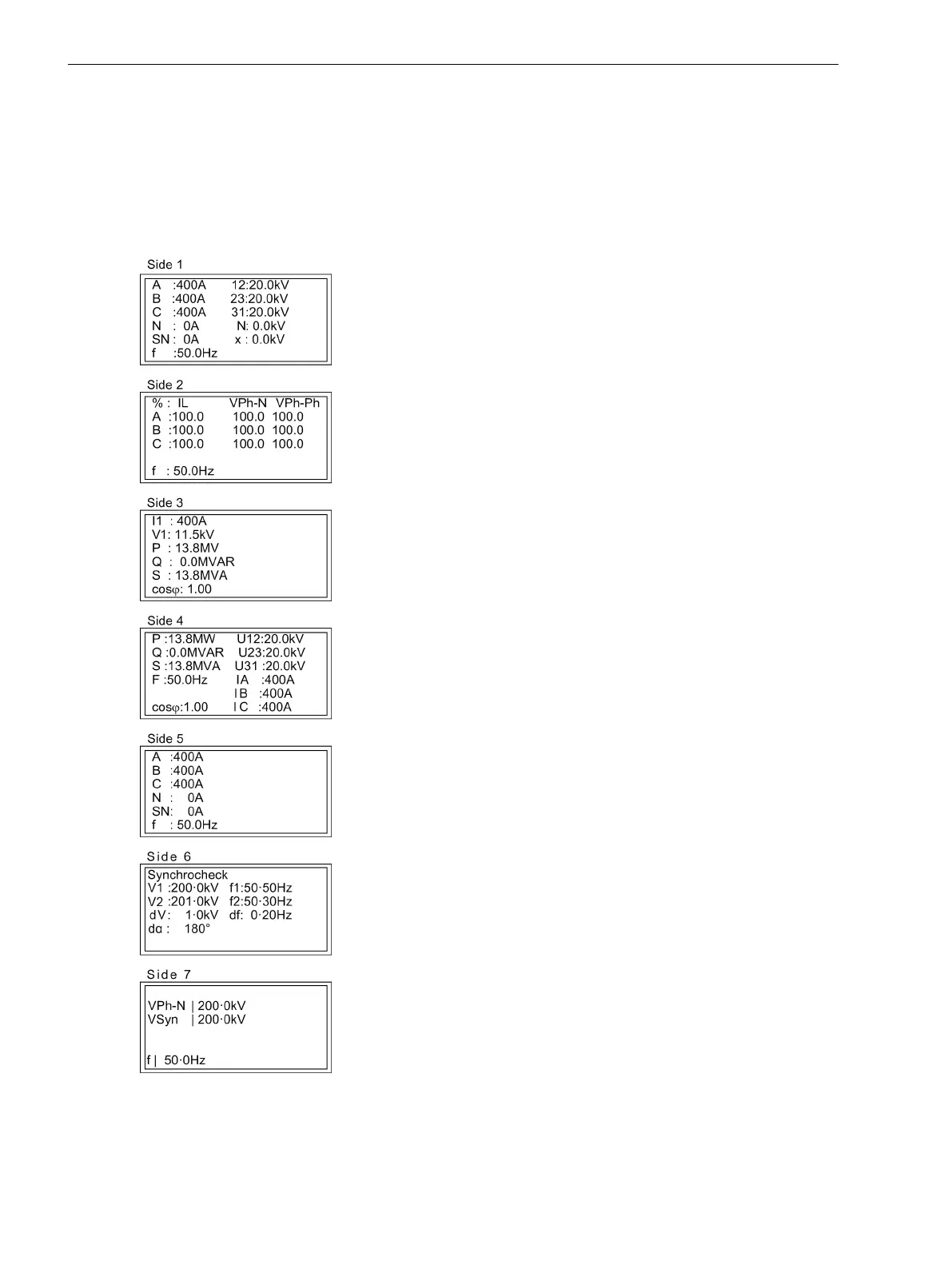

[grundbild6zei-mit-u-ohne-erw-mw-20070116, 1, en_US]
Figure E-1
Default display of the 7SD80 for models with V without extended measured values
For V0/I0 ϕ measurement, the measured ground current INB is shown under N and the ground current IN or
INs under Ns.
E.5
Default Settings and Protocol-dependent Functions
E.5 Default Display
328 SIPROTEC 4, 7SD80, Manual
E50417-G1100-C474-A2, Edition 02.2018
