7SD80 — Housing for Panel Flush Mounting, Cabinet Flush
Mounting and Panel Surface Mounting
7SD801*
7SD801*
[kl-uebers-7sd80-1-100801, 1, en_US]

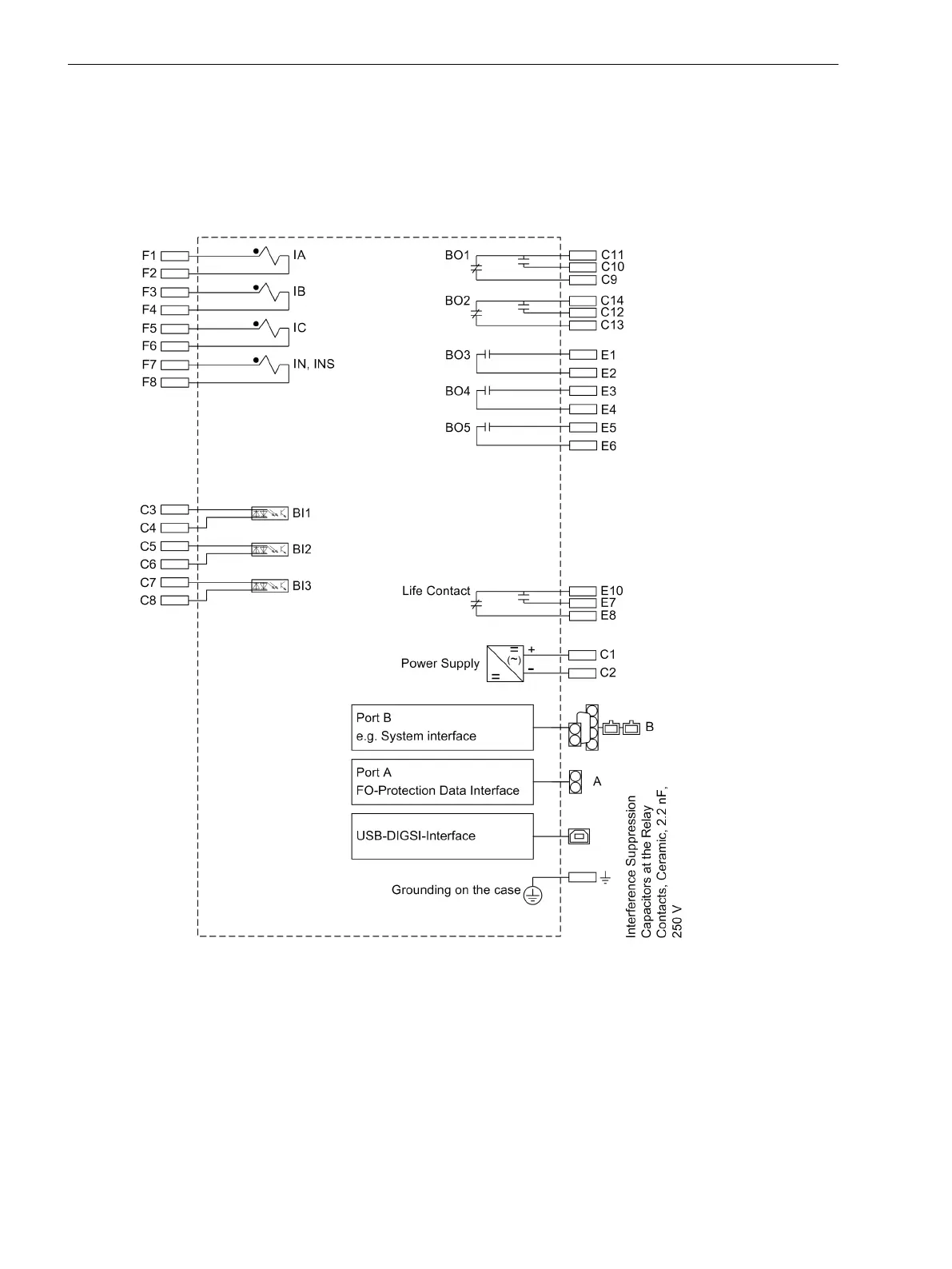

Figure B-1
Overview diagram 7SD801*
B.1
Terminal Assignments
B.1 7SD80 — Housing for Panel Flush Mounting, Cabinet Flush Mounting and Panel Surface Mounting
306 SIPROTEC 4, 7SD80, Manual
E50417-G1100-C474-A2, Edition 02.2018
