Pre-defined CFC Charts
Device and System Logic

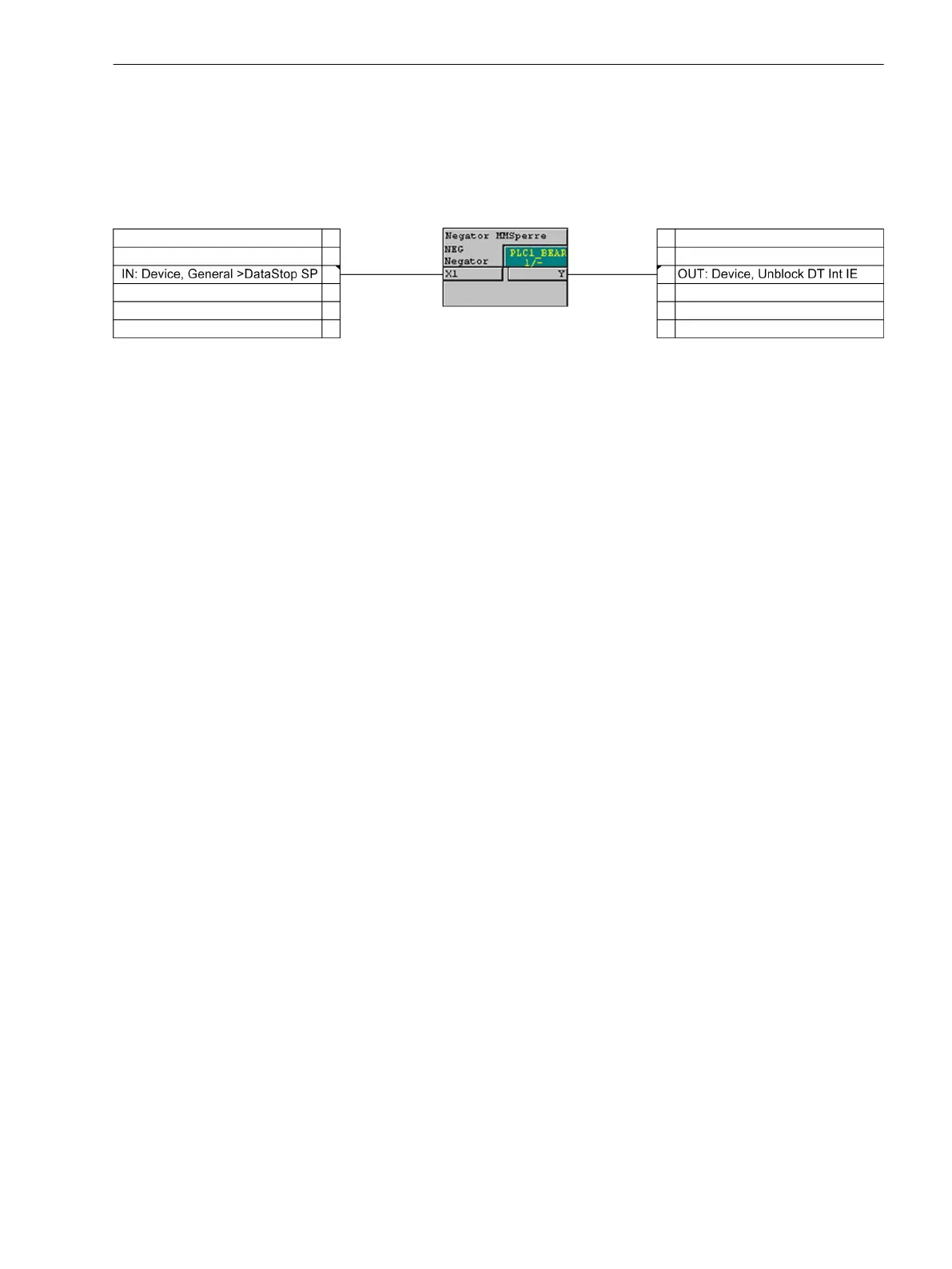

A negator block of the slow logic (PLC1-BEARB) is created from the binary input “DataStop” into the internal
single point indication “UnlockDT”.
[cfc-topo-geraet-abmeld-040216-wlk, 1, en_US]
Figure E-8 Connection of input and output
E.6
Default Settings and Protocol-dependent Functions
E.6 Pre-defined CFC Charts
SIPROTEC 4, 7SD80, Manual 331
E50417-G1100-C474-A2, Edition 02.2018
