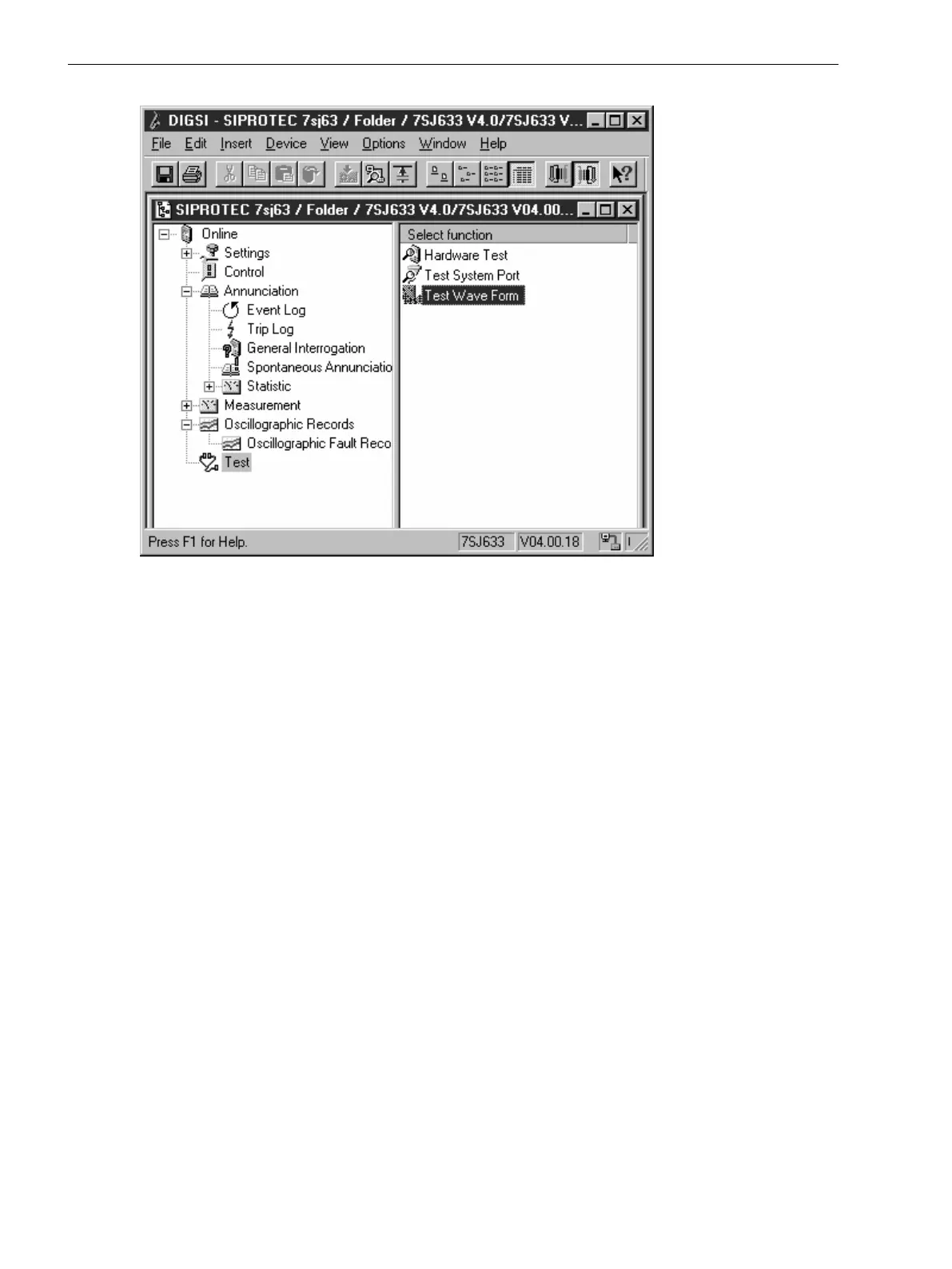

Figure 3-32
Test Wave Form window in DIGSI - Example
Oscillographic recording is immediately started. During the recording, an annunciation is output in the left
area of the status line. Bar segments additionally indicate the progress of the procedure.
The SIGRA or the Comtrade Viewer program is required to view and analyze the oscillographic data.
Mounting and Commissioning
3.3 Commissioning
246 SIPROTEC 4, 7SD80, Manual
E50417-G1100-C474-A2, Edition 02.2018
