7SD807*
[kl-uebers-7sd803-4-100801, 1, en_US]

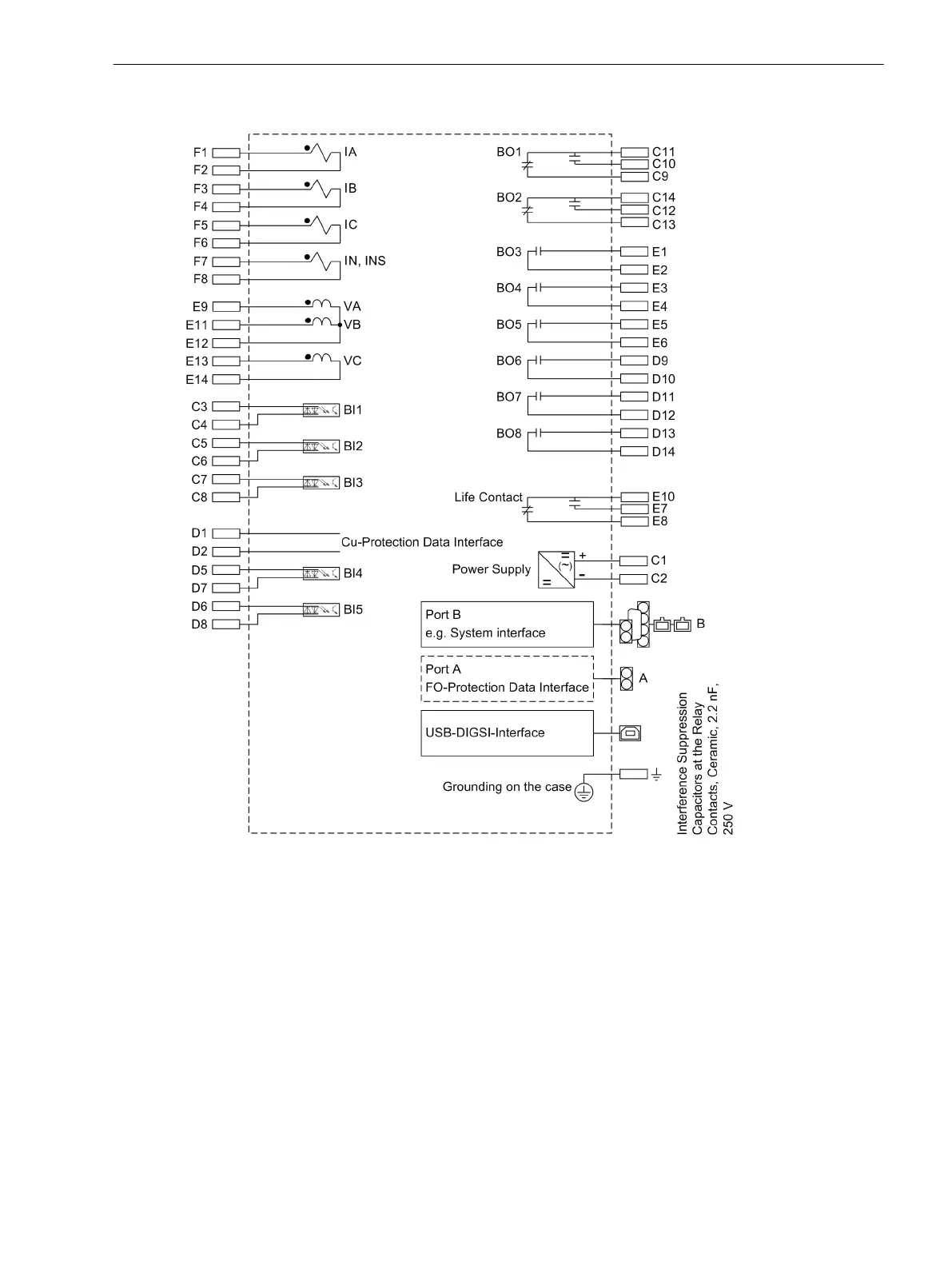

Figure B-6
Overview diagram 7SD807*
The optical fiber interface at port A can only be delivered if the 12th digit equals 7.
Terminal Assignments
B.1 7SD80 — Housing for Panel Flush Mounting, Cabinet Flush Mounting and Panel Surface Mounting
SIPROTEC 4, 7SD80, Manual 311
E50417-G1100-C474-A2, Edition 02.2018
