[td_tdio231x, 1, en_US]

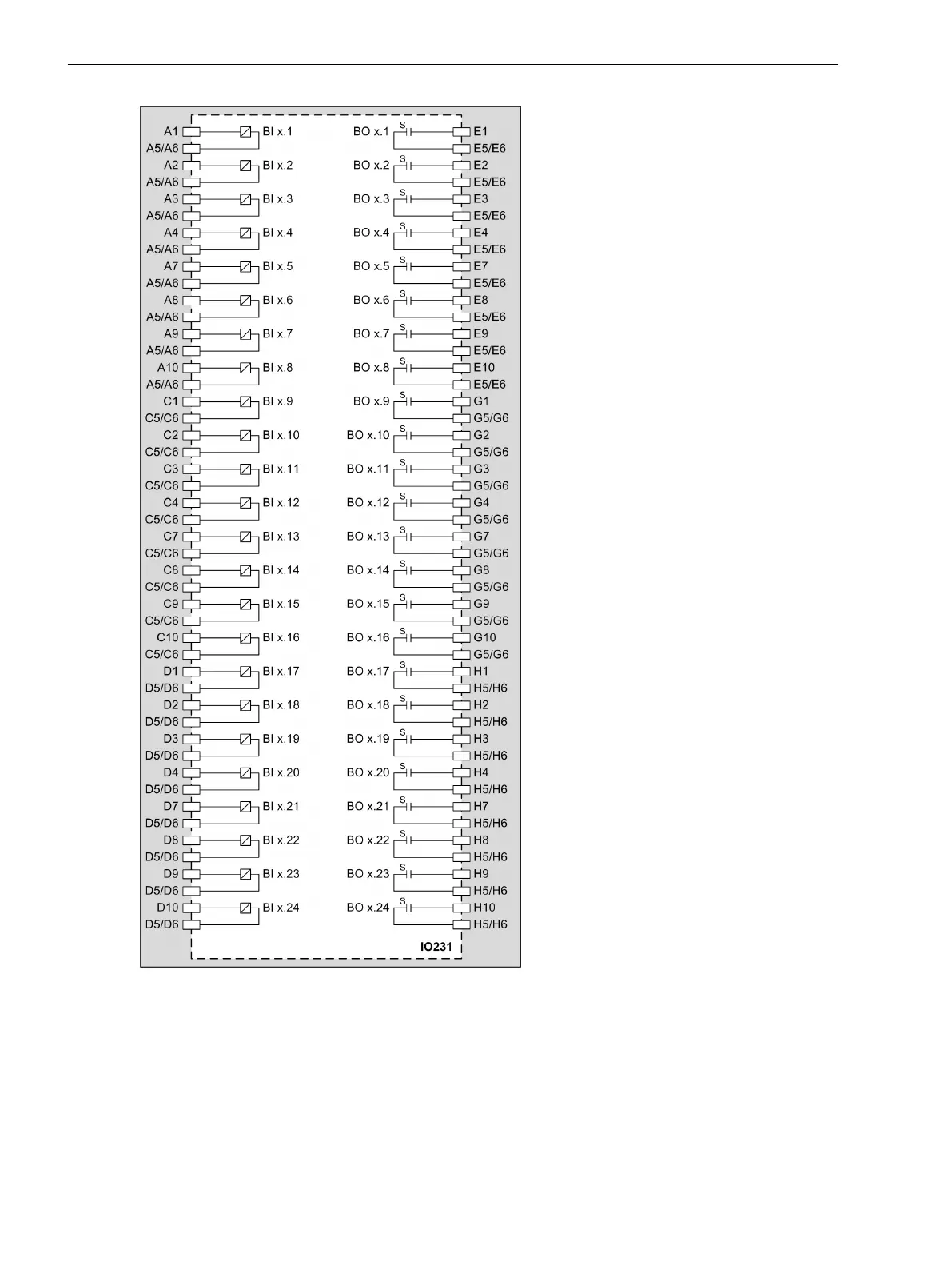

Figure 3-65
IO231 – Connection Diagram
Input Module IO233
Description
The terminals for the following are located on the input module IO233:
•
48 binary inputs
3.2.19
3.2.19.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
112 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
