[tdio211x-211112-01.tif, 1, en_US]

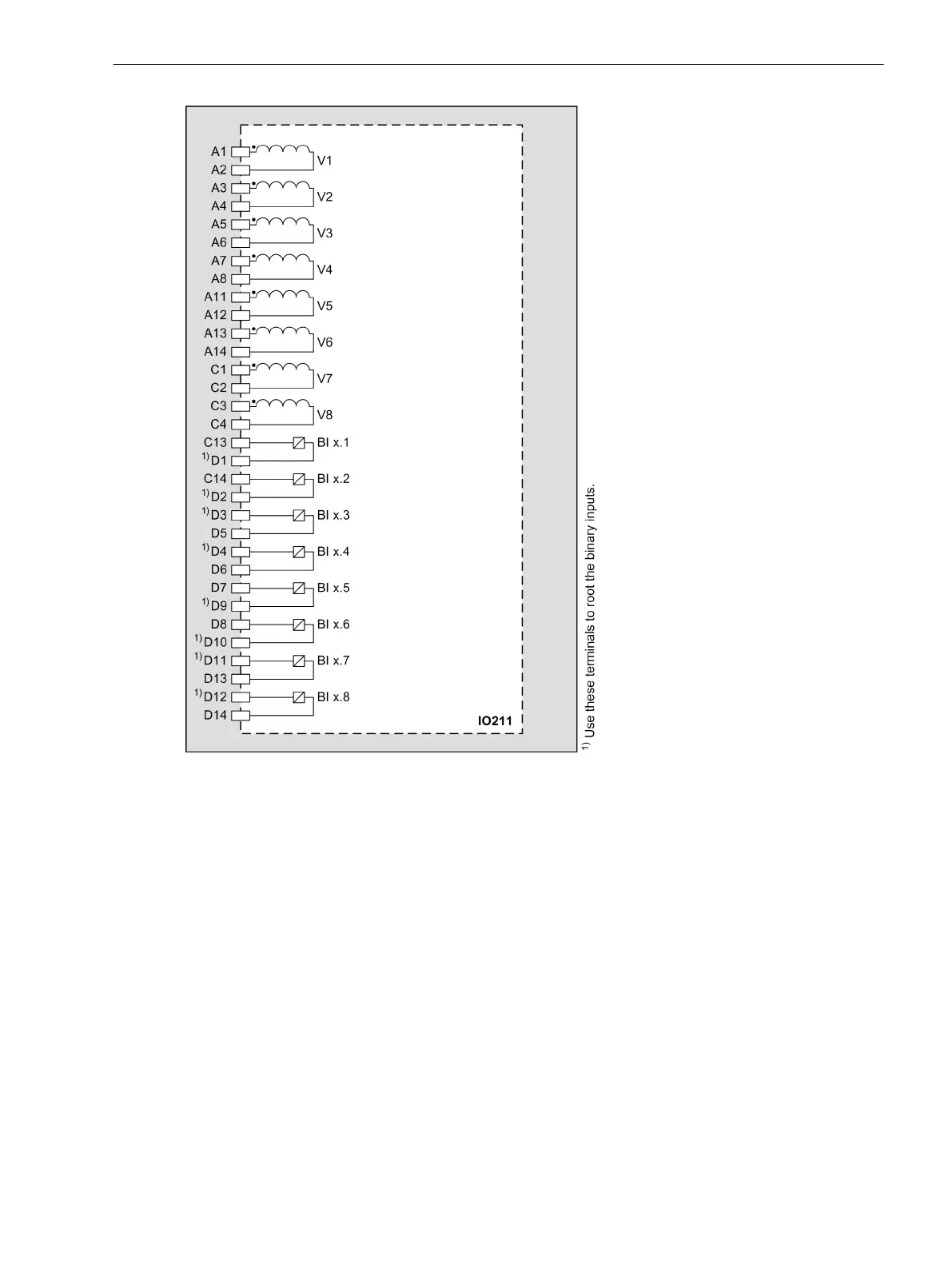

Figure 3-50
IO211 – Connection Diagram
Input and Output Module IO212
Description
The terminals for the following are located on the input and output module IO212:
•
8 high-speed measuring-transducer inputs for current (20 mA) or voltage (10 V)
•
8 binary inputs
The connections are distributed over three 14-pole voltage terminals.
3.2.13
3.2.13.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 97
C53000-G5040-C002-J, Edition 08.2020
