Terminal and Connection Diagram
For the binary inputs and outputs, the x corresponds to the slot in the 19-inch rack.
[cdio211x-221112-01.tif, 1, en_US]

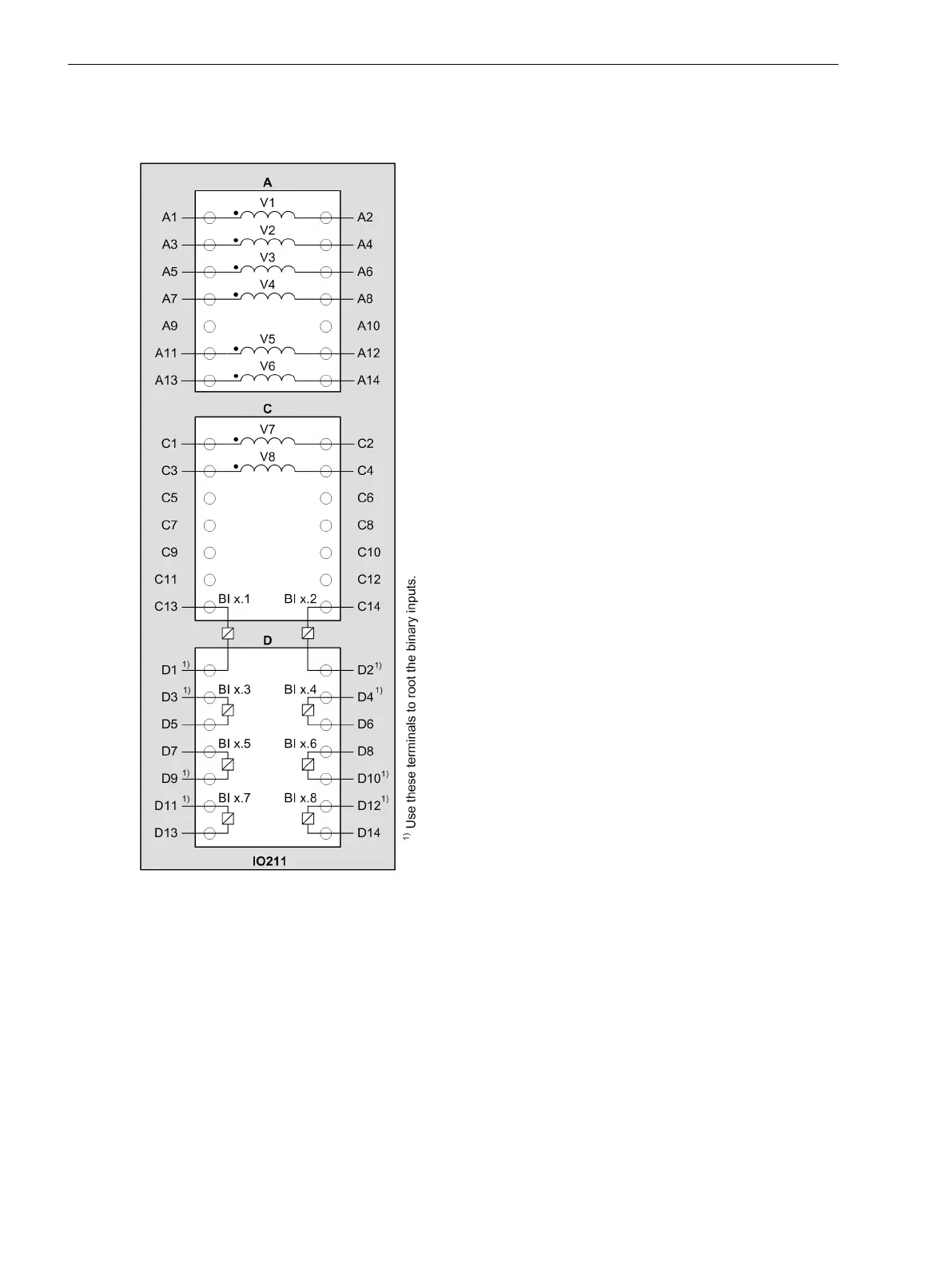

Figure 3-49
IO211 – Terminal Diagram
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
96 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
