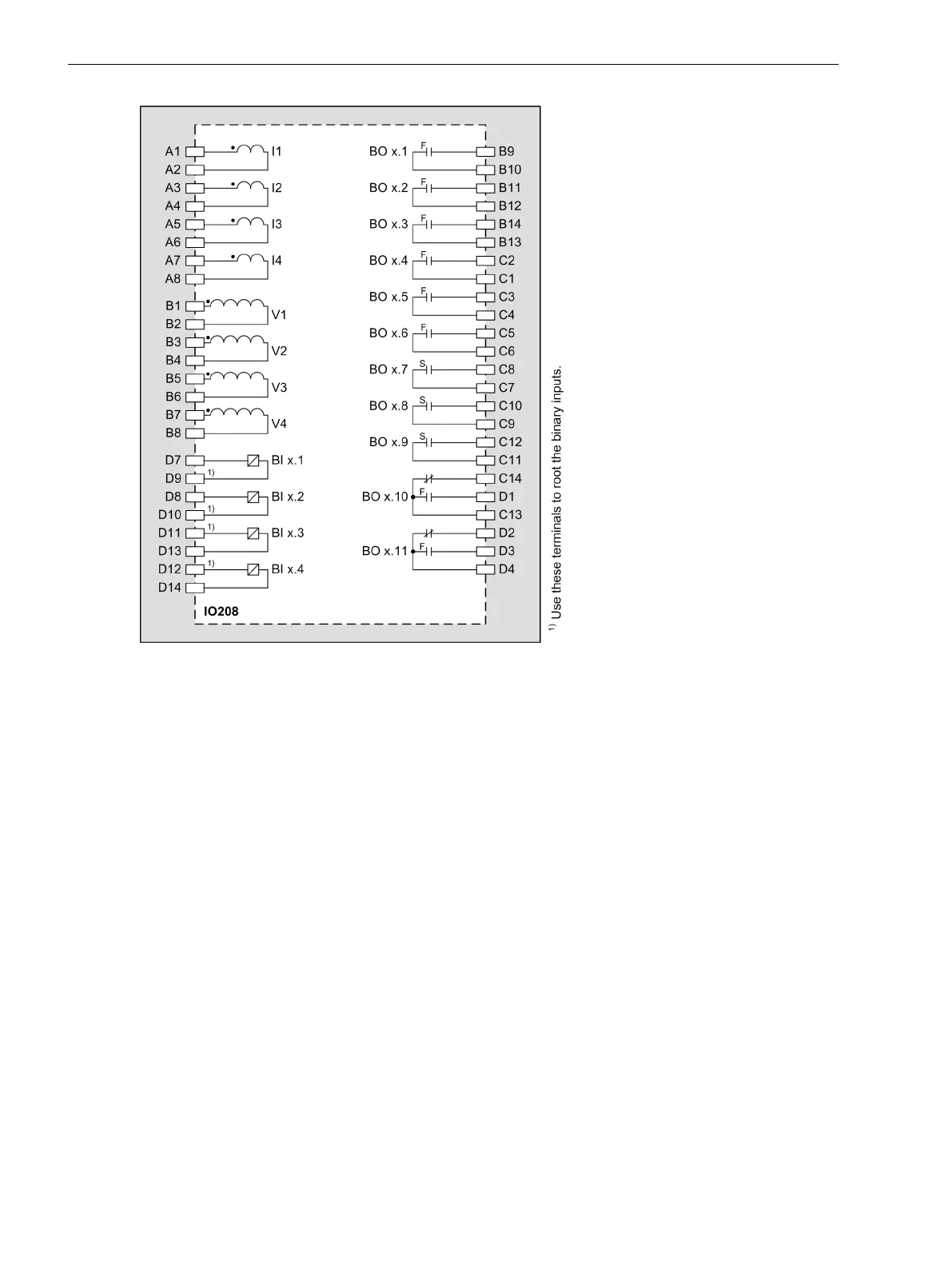

Figure 3-41
IO208 – Connection Diagram
Input and Output Module IO209
Description
The terminals for the following are located on the input and output module IO209:
•
8 binary inputs
•
4 binary outputs with semiconductor-accelerated make contacts (type HS)
The connections are distributed over three 14-pole voltage terminals.
3.2.10
3.2.10.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
88 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
