[tdio205x-240812-01.tif, 1, en_US]

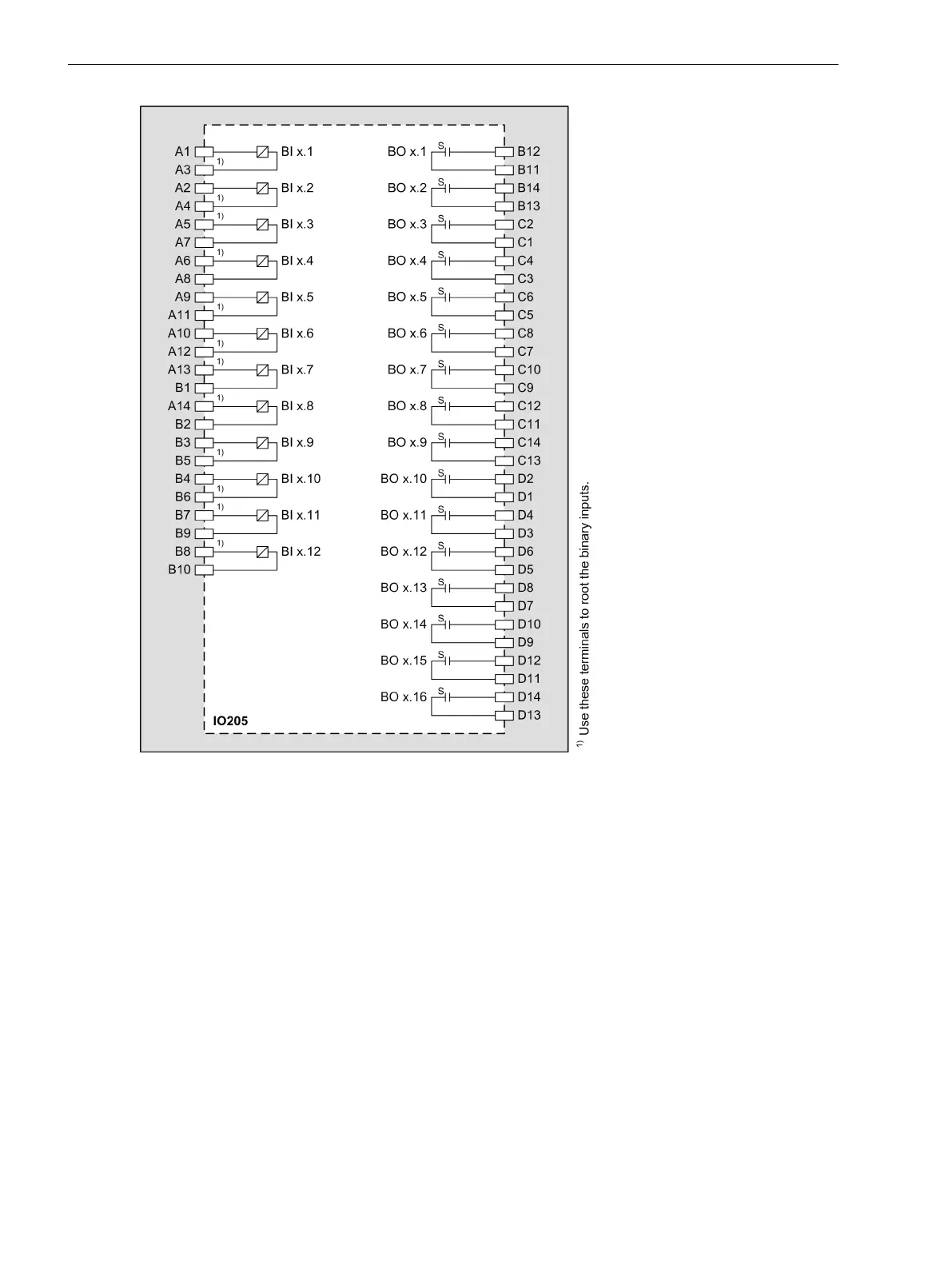

Figure 3-32
IO205 – Connection Diagram
Input and Output Module IO206
Description
The terminals for the following are located on the input and output module IO206:
•
6 binary inputs
•
7 binary outputs with 7 standard make contacts (type S)
The connections are distributed over two 14-pole voltage terminals.
3.2.7
3.2.7.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
80 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
