[tdio202x-240812-01.tif, 1, en_US]

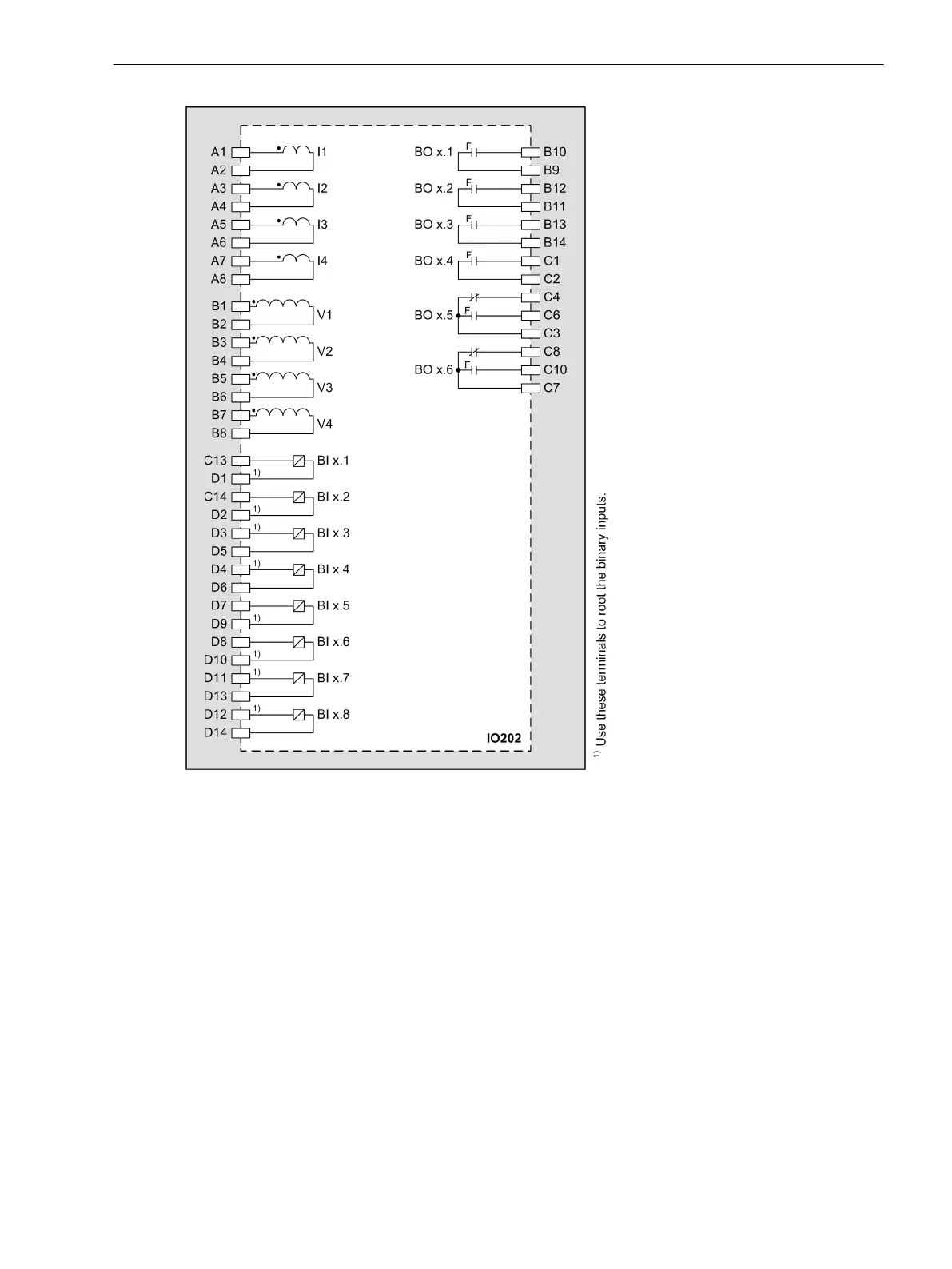

Figure 3-23
IO202 – Connection Diagram
Input and Output Module IO203
Description
The terminals for the following are located on the input and output module IO203:
•
8 current transformers (optionally protection-class current transformers or instrument transformers)
•
4 binary inputs (2 binary inputs each with common connection)
•
4 binary outputs with 4 high-speed make contacts (type F)
The connections are distributed over:
•
2 x 8-pole current terminal
•
1 x 14-pole voltage terminal
3.2.4
3.2.4.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 71
C53000-G5040-C002-J, Edition 08.2020
