[tdio201x-290812-01.tif, 1, en_US]

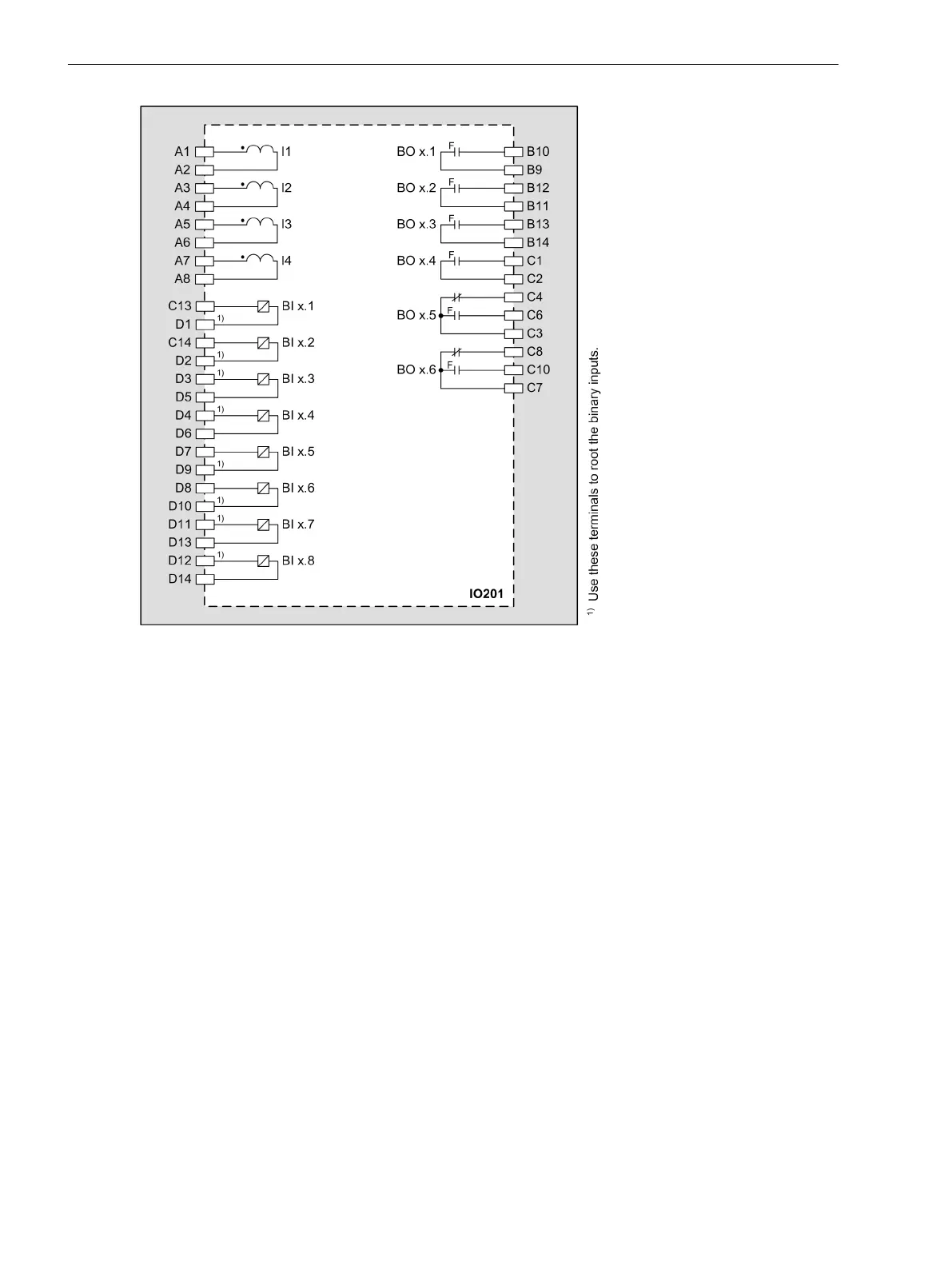

Figure 3-20
IO201 – Connection Diagram
Input and Output Module IO202
Description
The terminals for the following are located on the input and output module IO202:
4 current transformers (optionally protection-class current transformers or instrument transformers)
4 voltage transformers
8 binary inputs
6 binary outputs, of which:
4 high-speed make contacts (type F)
2 high-speed change-over contacts (type F)
The connections are distributed over:
1 x 8-pole current terminal
3 x 14-pole voltage terminal
3.2.3
3.2.3.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
68 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
