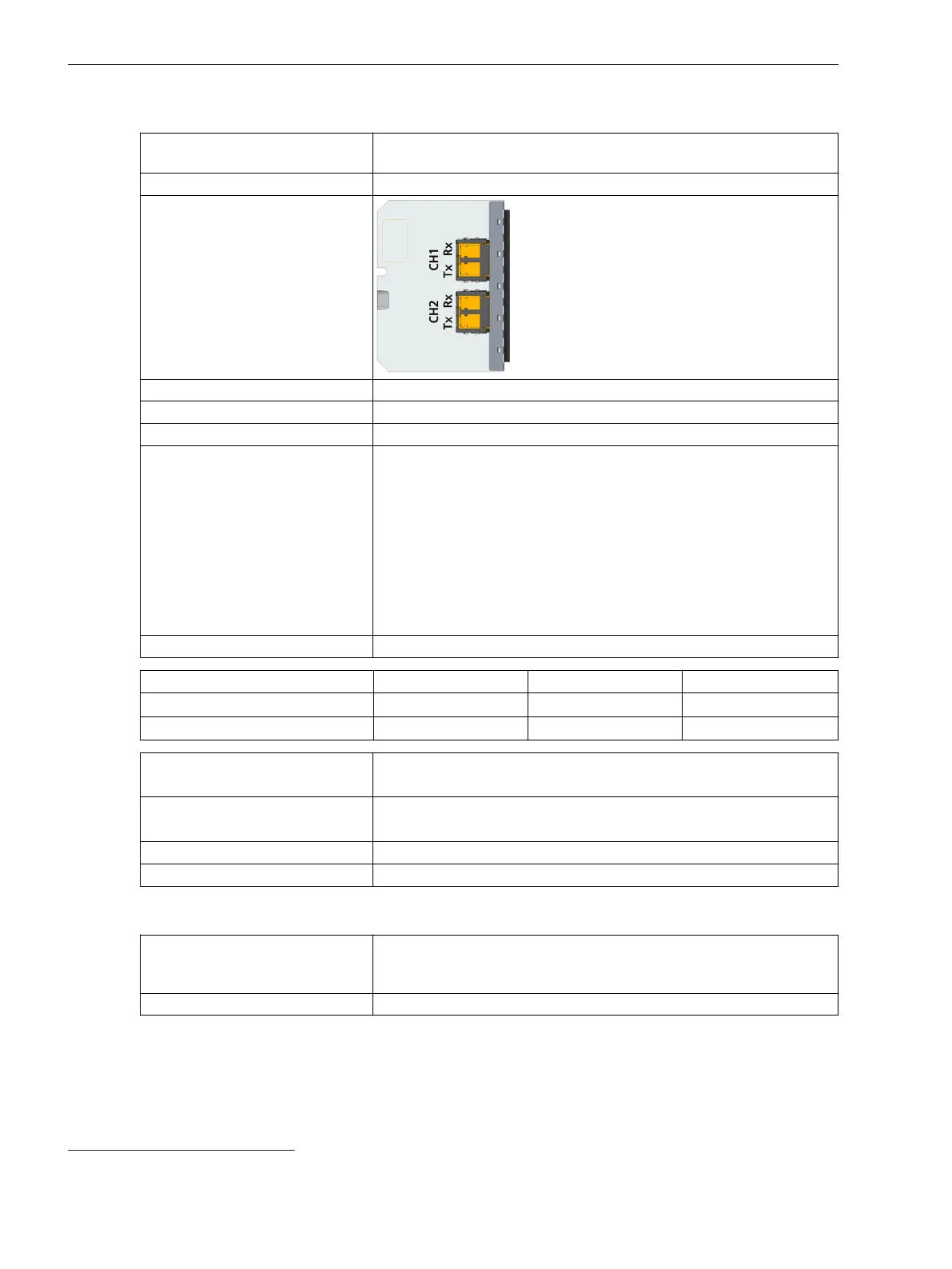

ETH-BB-2FO
Description Communication module for the transmission of Ethernet protocols via
2 optical interfaces
Product code P1Z390
Figure
Connector type 2 x duplex LC
Wavelength λ = 1300 nm
Baud rate 100 Mbit/s
Protocol DIGSI 5 protocol (secure Web service protocol)
IEC 61850 (MMS and GOOSE)
DNP3
Modbus TCP
IEC 60870-5-104
PROFINET IO
Synchrophasor protocol (IEEE C37.118 - PMU)
You can switch other network services like SNMP, RSTP, PRP, HSR, SNTP,
and SUP Ethernet on and off.
Max. line length 2 km for 62.5 µm/125 µm optical fibers
Transmitter Power Minimum Typical Maximum
50 μm/125 μm, NA
13
= 0.2
-24.0 dBm -21.0 dBm -17.0 dBm
62.5 μm/125 μm, NA
13
= 0.275
-20.0 dBm -17.0 dBm -14.0 dBm
Receiver sensitivity Maximum -12.0 dBm
Minimum -31.0 dBm
Optical budget
Minimum 7.0 dB for 50 μm/125 μm, NA
13
= 0.2
Minimum 11.0 dB for 62.5 μm/125 μm, NA
13
= 0.275
Interface design Corresponds to IEEE 802.3, 100Base-FX
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
ETH-BD-2FO
Description
Communication module for the transmission of Ethernet protocols via
2 optical interfaces, suitable for Process-bus client, Merging Unit, and
ultrafast GOOSE
Product code P1Z3034
4.2.5.3
4.2.5.4
13
Numerical Aperture (NA = sin θ [launch angle])
Plug-In Modules
4.2 Communication Modules
174 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
