Siemens SIPROTEC 5 V8.30 User Manual

Terminals
Overview of Terminals
[le_ps204, 1, --_--]

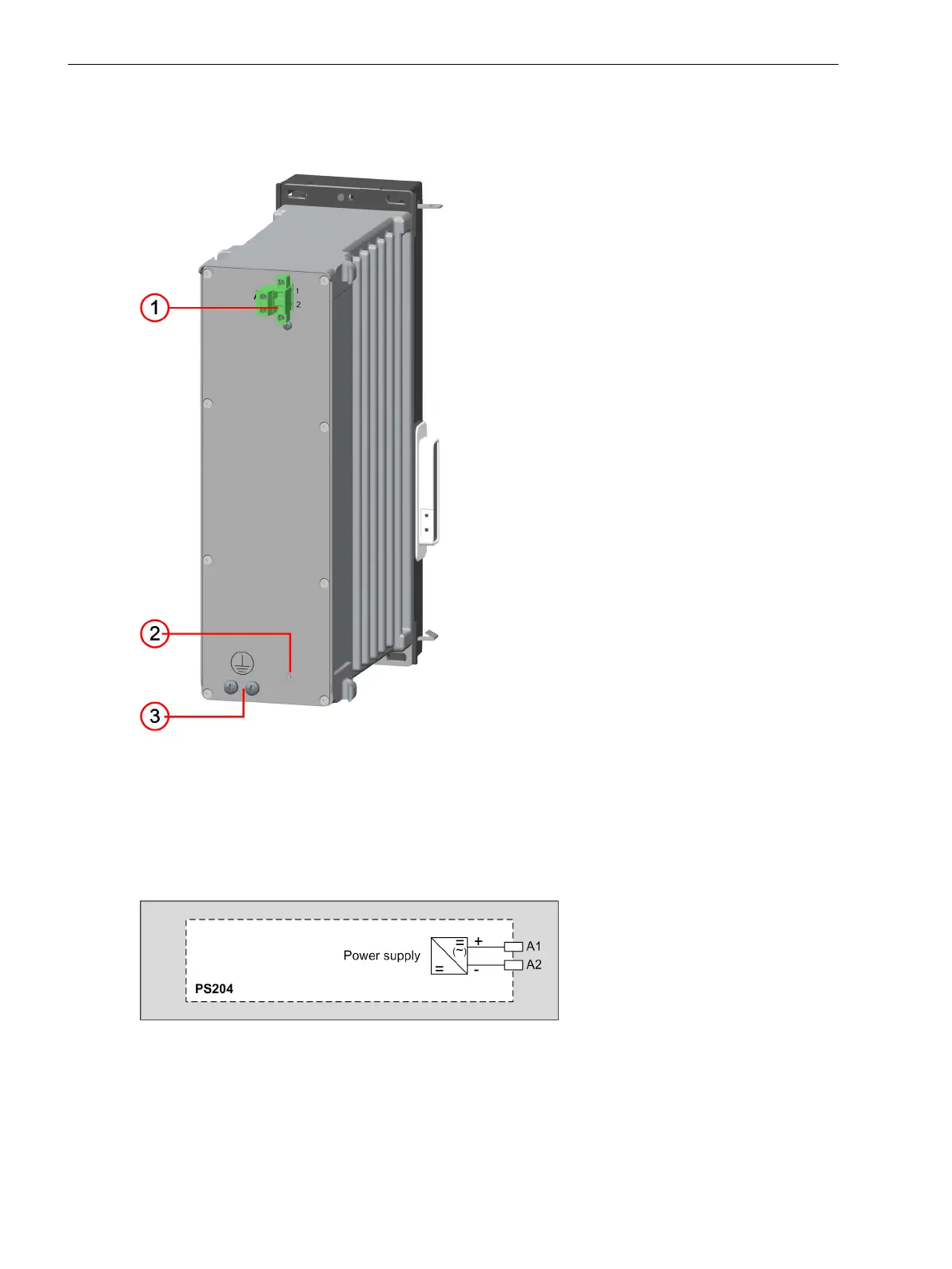

Figure 3-12
PS204 – Terminals
(1) 2-pole terminal to connect power supply
(2) LED: Power On
(3) Protective grounding terminal
Connection Diagram
[tdps204x, 1, en_US]
Figure 3-13 PS204 – Connection Diagram
3.1.4.3
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
60 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
