[tdio110x-220513-01.tif, 1, en_US]

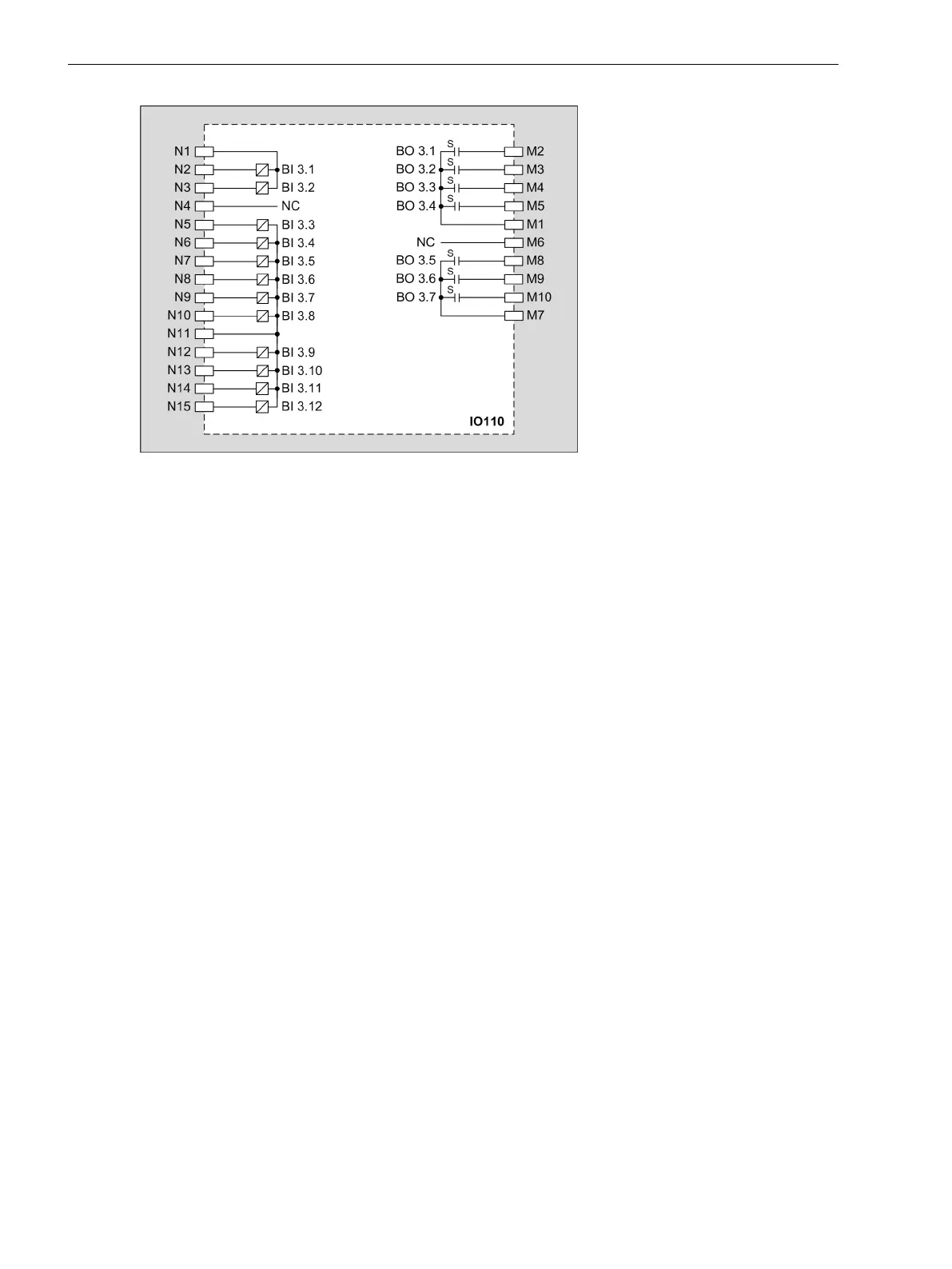

Figure 3-90 IO110 – Connection Diagram
Input and Output Module IO111
Description
The terminals for the following are located on the input and output module IO111:
•
12 temperature inputs
The connections are distributed over:
•
1 x 16-pole terminal
•
1 x 17-pole terminal
3.4.6
3.4.6.1
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
140 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
