[tdio103x-01.vsd, 1, en_US]

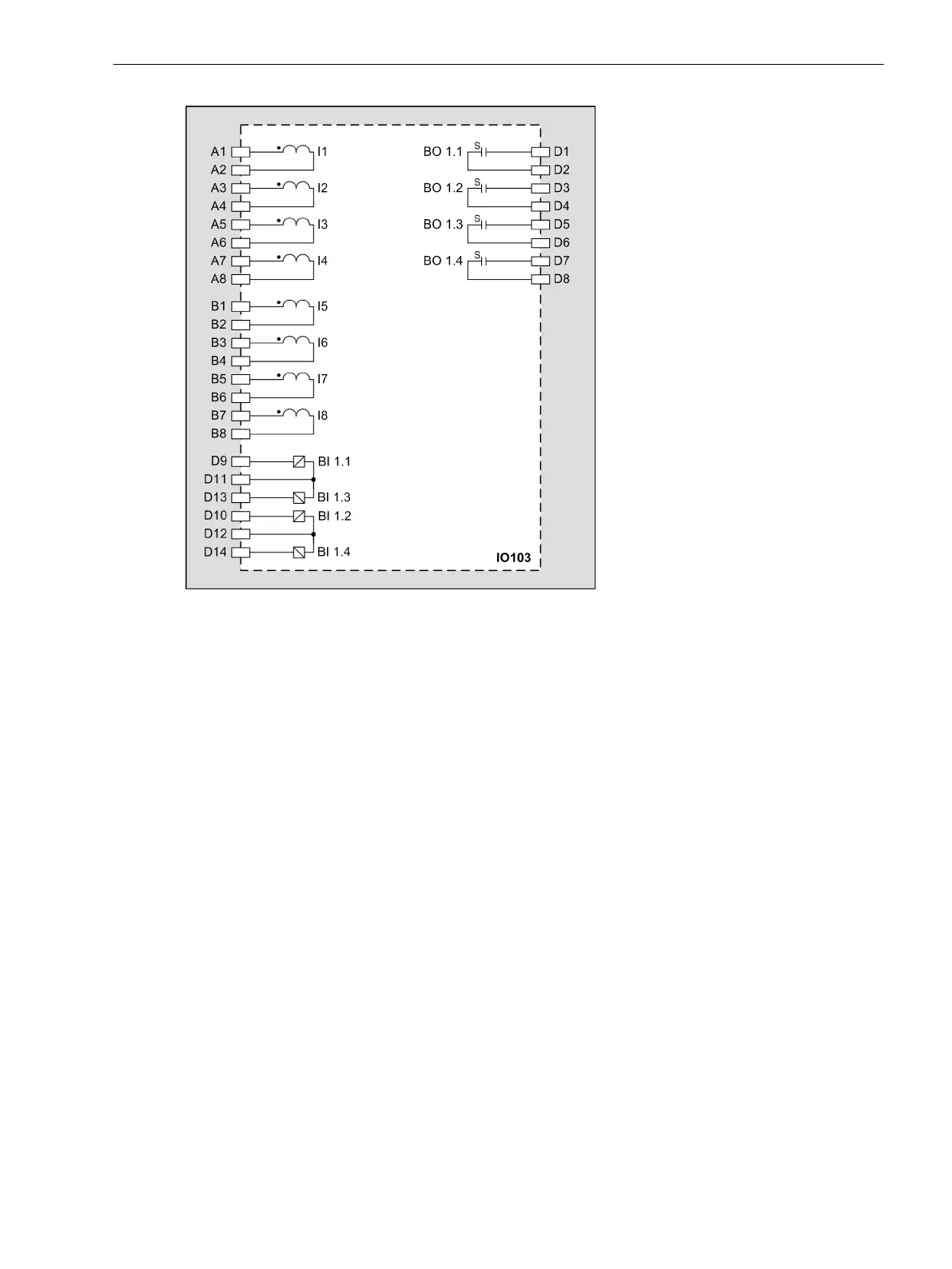

Figure 3-87
IO103 – Connection Diagram
Input and Output Module IO110
Description
The terminals for the following are located on the input and output module IO110:
•
12 binary inputs
•
7 binary outputs, of which:
– 7 standard make contacts (type S)
The connections are distributed over:
•
1 x 10-pole terminal
•
1 x 15-pole terminal
3.4.5
3.4.5.1
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
SIPROTEC 5, Hardware Description, Manual 137
C53000-G5040-C002-J, Edition 08.2020
