Installing Current and Voltage Terminals
Description
[dwklepos-030211-01.tif, 1, --_--]

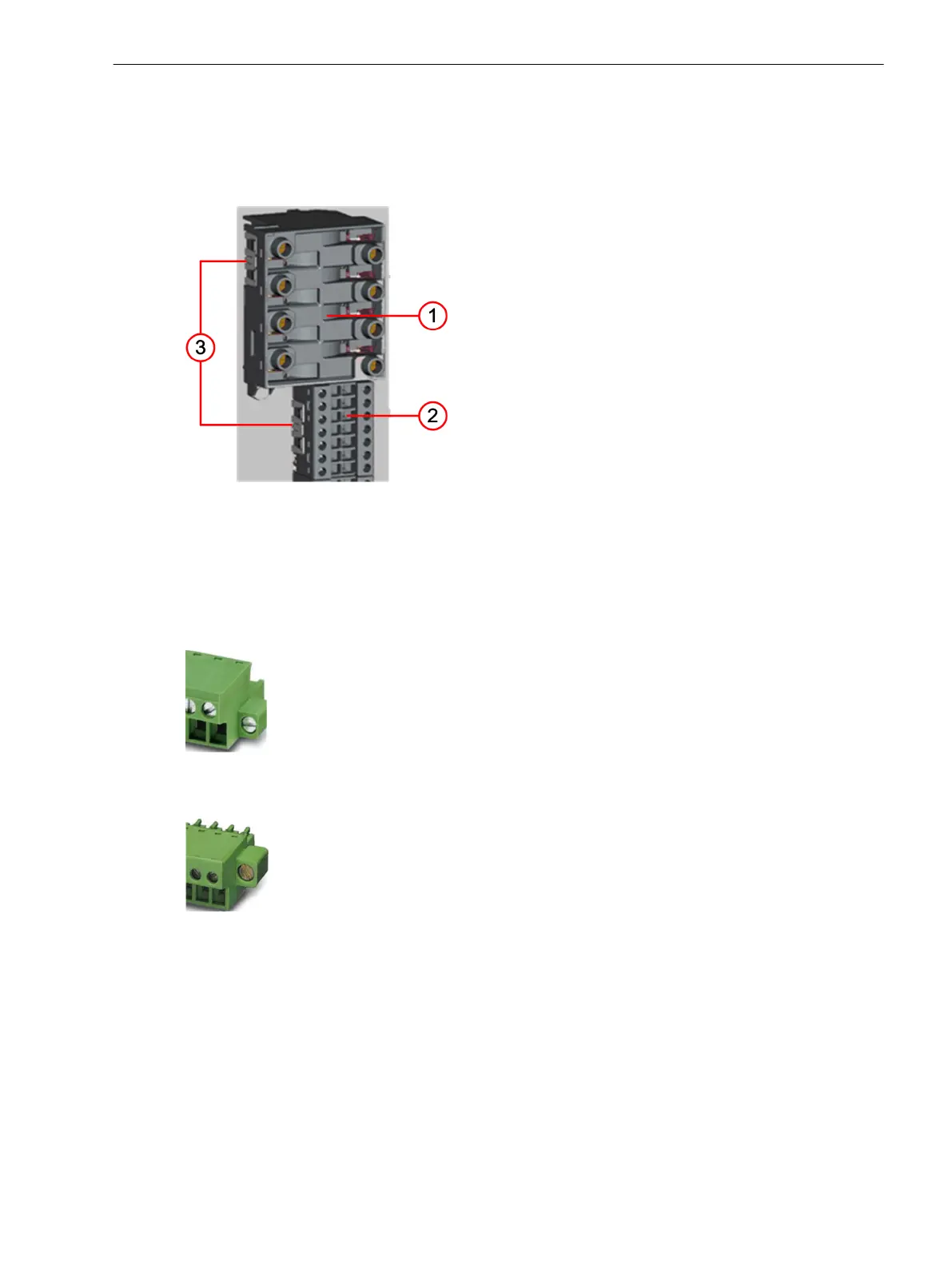

Figure 5-22 Current and Voltage Terminals with Spring Clips
(1) Current-terminal block
(2) Voltage-terminal block
(3) Spring clips
The spring clips fix the terminal block in place.
[sc_klepos-020414-01, 1, --_--]
Figure 5-23 Voltage Terminal with Screw Connection
[dw_terminal position IO111, 1, --_--]
Figure 5-24 Voltage Terminal with Screw Connection – IO111
Current-Terminal Block of the Modular Devices
The following transformers can optionally be installed in a current-terminal block for modular devices:
•
4 protection-class current transformers
•
3 protection-class current transformers and 1 instrument transformer
•
4 instrument transformers
Protection-class current transformers on modular devices are transformers with a rated current of 1 A or 5 A
and a device-dependent measuring range of 20 x rated current or 100 x rated current.
5.7
5.7.1
Working on the Device
5.7 Installing Current and Voltage Terminals
SIPROTEC 5, Hardware Description, Manual 211
C53000-G5040-C002-J, Edition 08.2020
