Terminals
Overview of Terminals
[le_io110, 3, --_--]

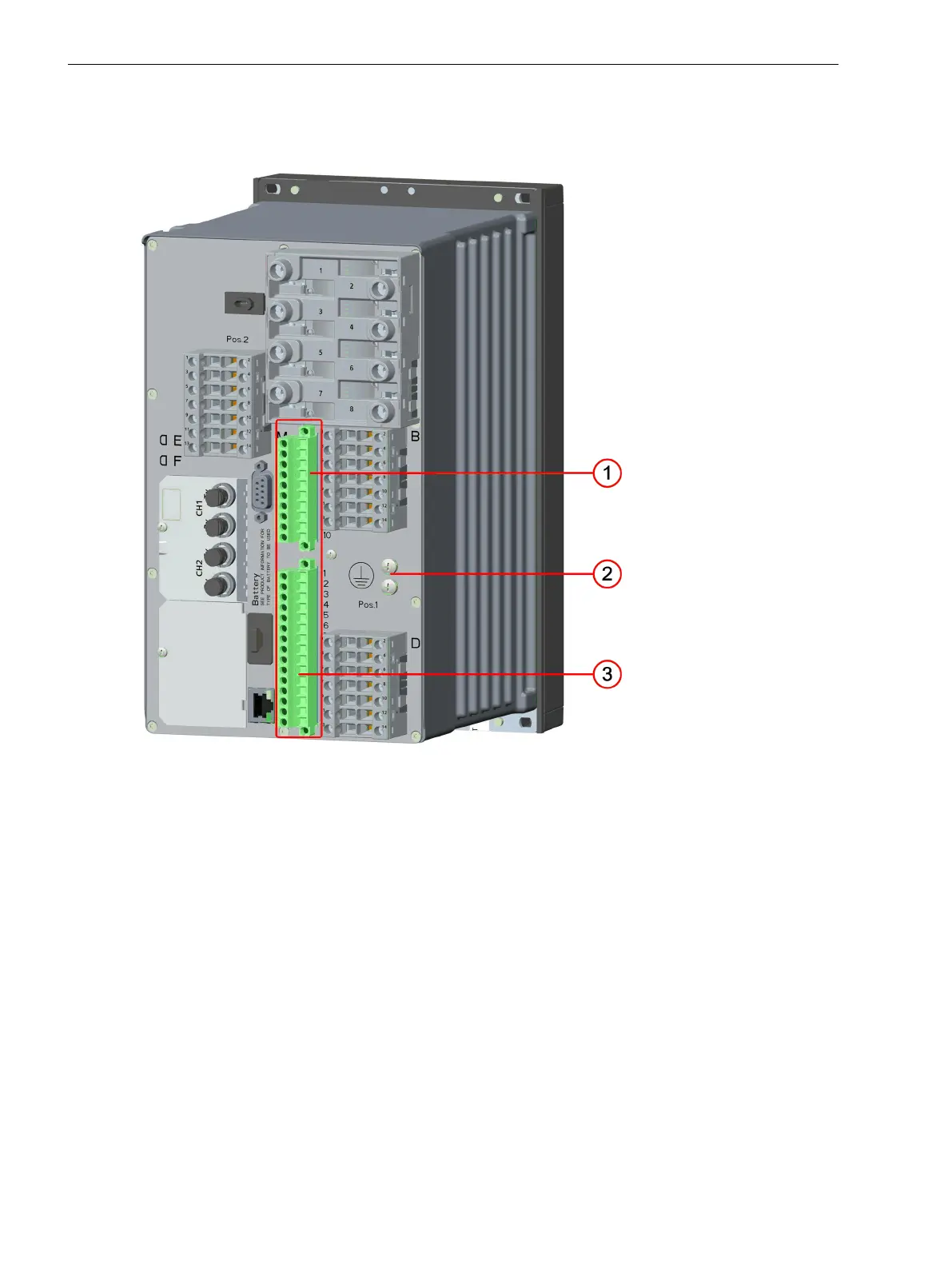

Figure 3-88
IO110 – Terminals
(1) Terminal M
(2) Protective grounding terminals
(3) Terminal N
3.4.5.2
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
138 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
