Siemens SIPROTEC 5 V8.30 User Manual

Terminals
Overview of Terminals

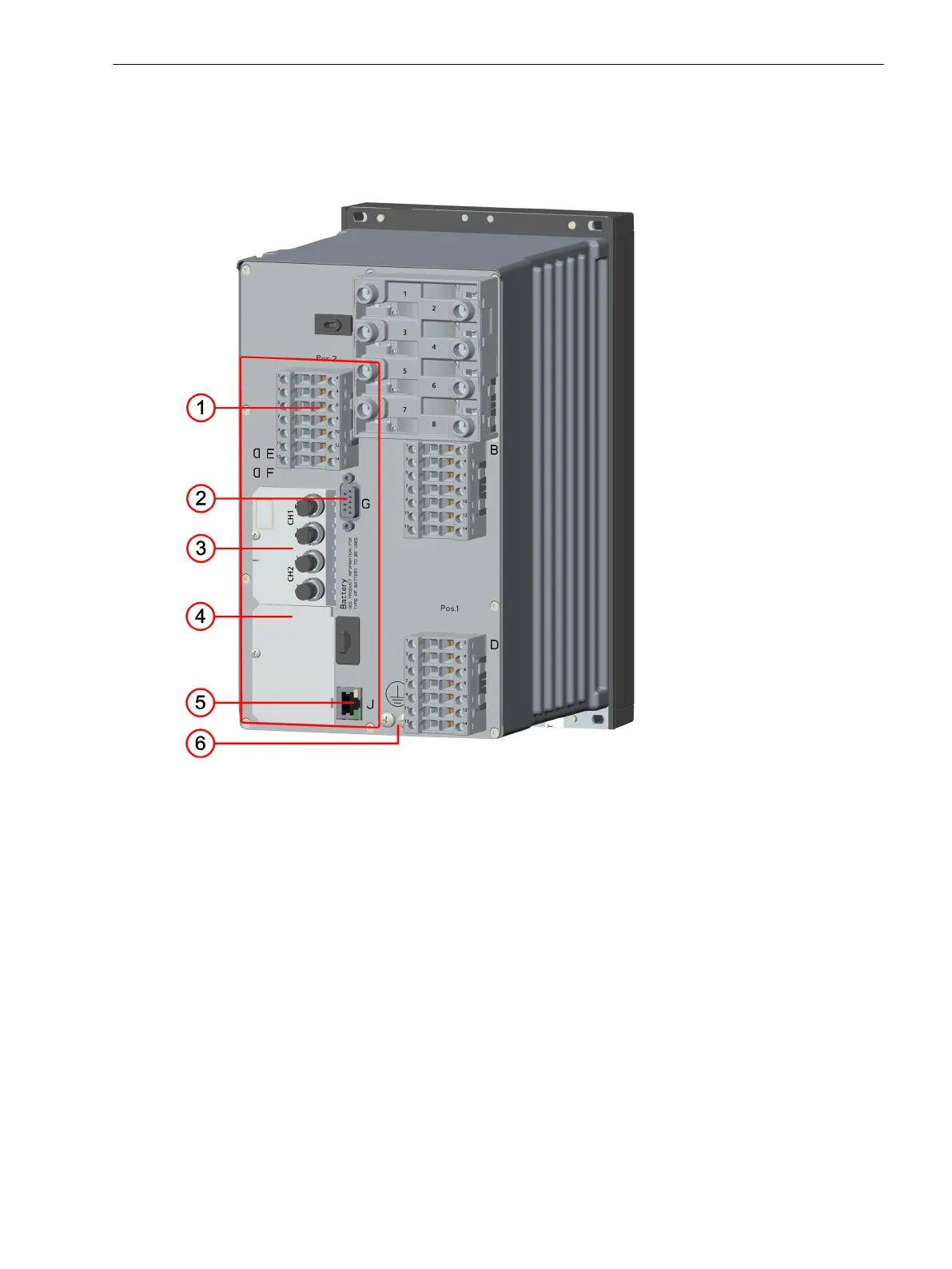

The terminals assigned to the module are identified by the frame in the figure.
[le_ps101, 2, --_--]
Figure 3-76
PS101 – Terminals
(1) Voltage terminal L
(2) Time synchronization G
(3) Plug-in module position E
(4) Plug-in module position F
(5) Integrated Ethernet interface J
(6) Protective grounding terminals
3.3.1.2
Electronic Modules
3.3 Power-Supply Module of Non-Modular Devices (7xx81, 7xx82)
SIPROTEC 5, Hardware Description, Manual 125
C53000-G5040-C002-J, Edition 08.2020
