Siemens SIPROTEC 5 V8.30 User Manual

USART-AG-1LDFO
Description Protection-interface module for synchronous operation with an optical
interface
Product code P1Z468

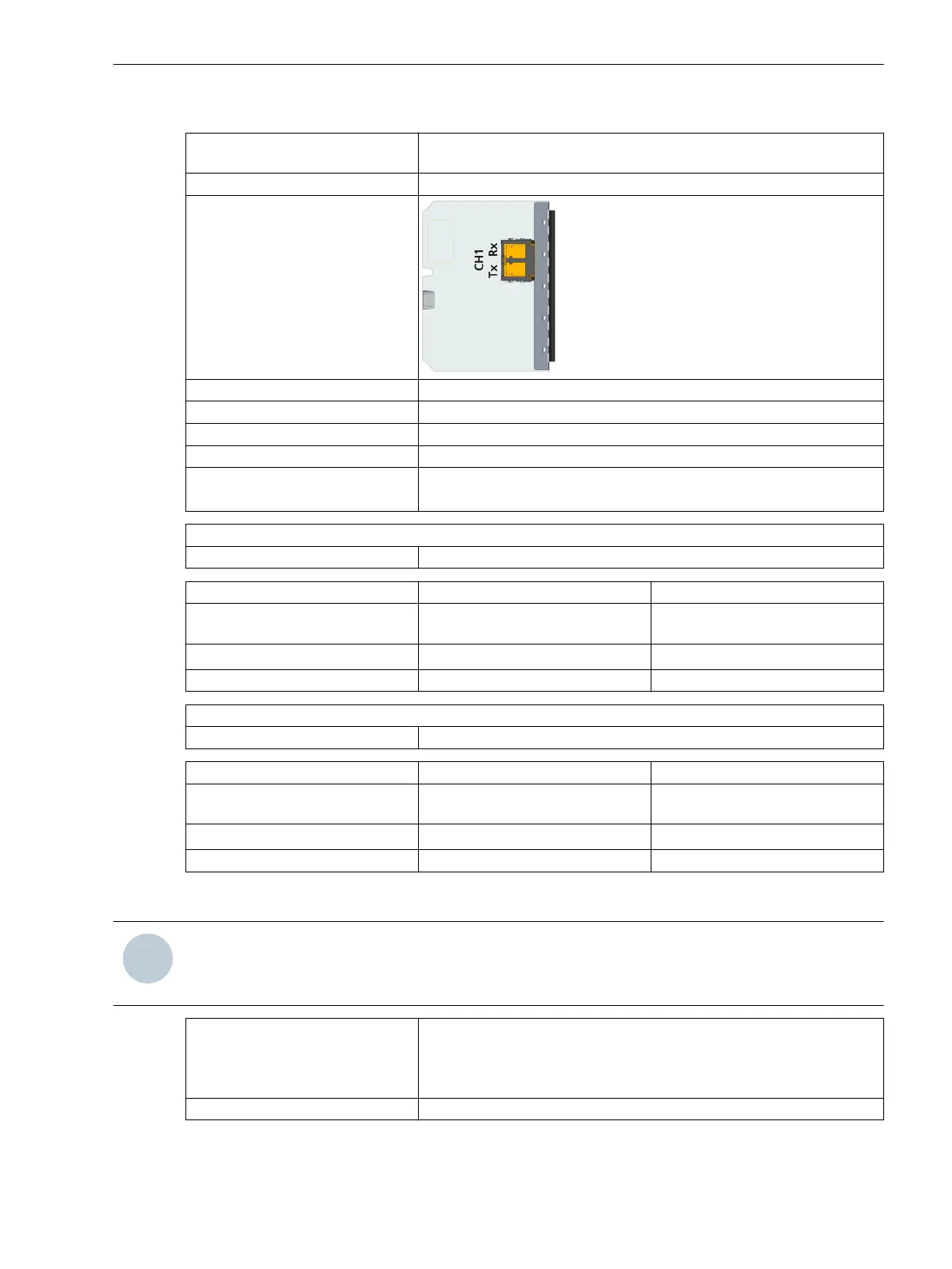

Figure
Connector type 1 x duplex LC
Wavelength λ = 1300 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 60 km for singlemode optical fibers or
8 km with multimode optical fiber
Distance 8 km
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
multimode optical fiber
-5.0 dBm
avg
0 dBm
avg
Receiver sensitivity 0 dBm
avg
-34.0 dBm
avg
Optical budget 29.0 dB –
Distance 60 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
singlemode optical fiber
-5.0 dBm
avg
0 dBm
avg
Receiver sensitivity 0 dBm
avg
-34.0 dBm
avg
Optical budget 29.0 dB –
USART-AH-1LDFO
i
i
NOTE
Use the protection-interface module USART-AH-1LDFO paired with USART-AJ-1LDFO or USART-AY-2LDFO
only.
Description Protection-interface module for synchronous operation with an optical
interface
In particular, a bidirectional data exchange through a single optical fiber
is possible with the USART-AJ-1LDFO module.
Product code P1Z765
4.2.4.3
4.2.4.4
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 165
C53000-G5040-C002-J, Edition 08.2020
