Overview of Operating Elements and Display Elements
On-Site Operation Panel of the Base 1/3 Module
[le_base_module, 3, --_--]

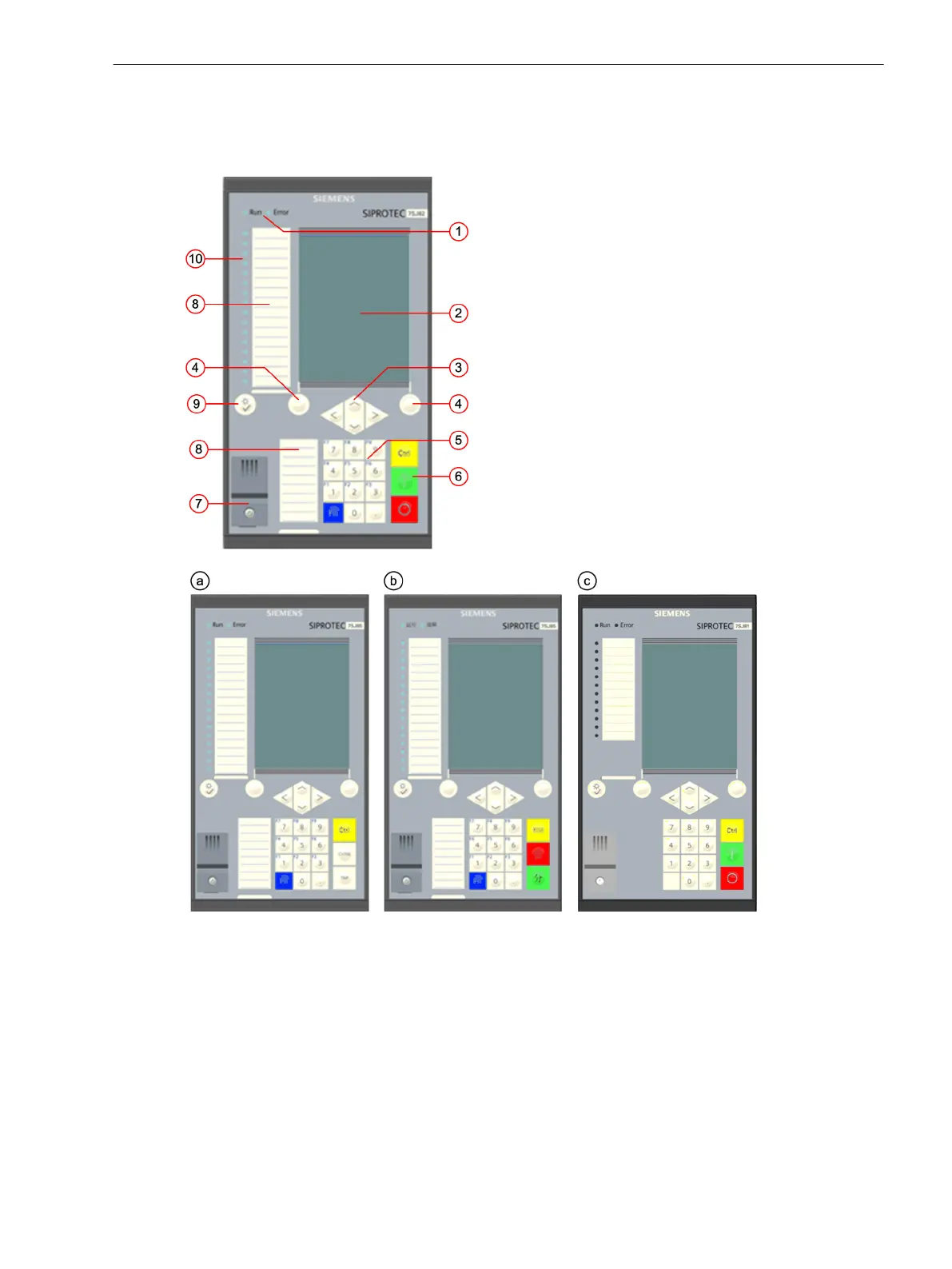

Figure 2-22
Base 1/3 Module in Standard Design, US Design (a), China Design (b), and for 7xx81 (c)
(1) Operating state display
(2) Display in 2 design versions
(3) Keypad with navigation keys
(4) Softkey
(5) Keypad with numeric keys and shiftable function keys (for 7xx81: without function keys)
(6) Keypad of control keys
(7) USB-port cover
(8) Cover labels
2.4.2
Forms of Devices and On-Site Operation Panels
2.4 On-Site Operation Panels
SIPROTEC 5, Hardware Description, Manual 43
C53000-G5040-C002-J, Edition 08.2020
