Example Installation of the PS204 with a CB202 in a 1-Row Device with 5/6 Configuration
•
1st device row:
– Mounting position 1: IO2xx
– Mounting position 2: PS201
– Mounting position 3: IO2xx
– Mounting position 4: PS204
– Mounting position 5: CB202

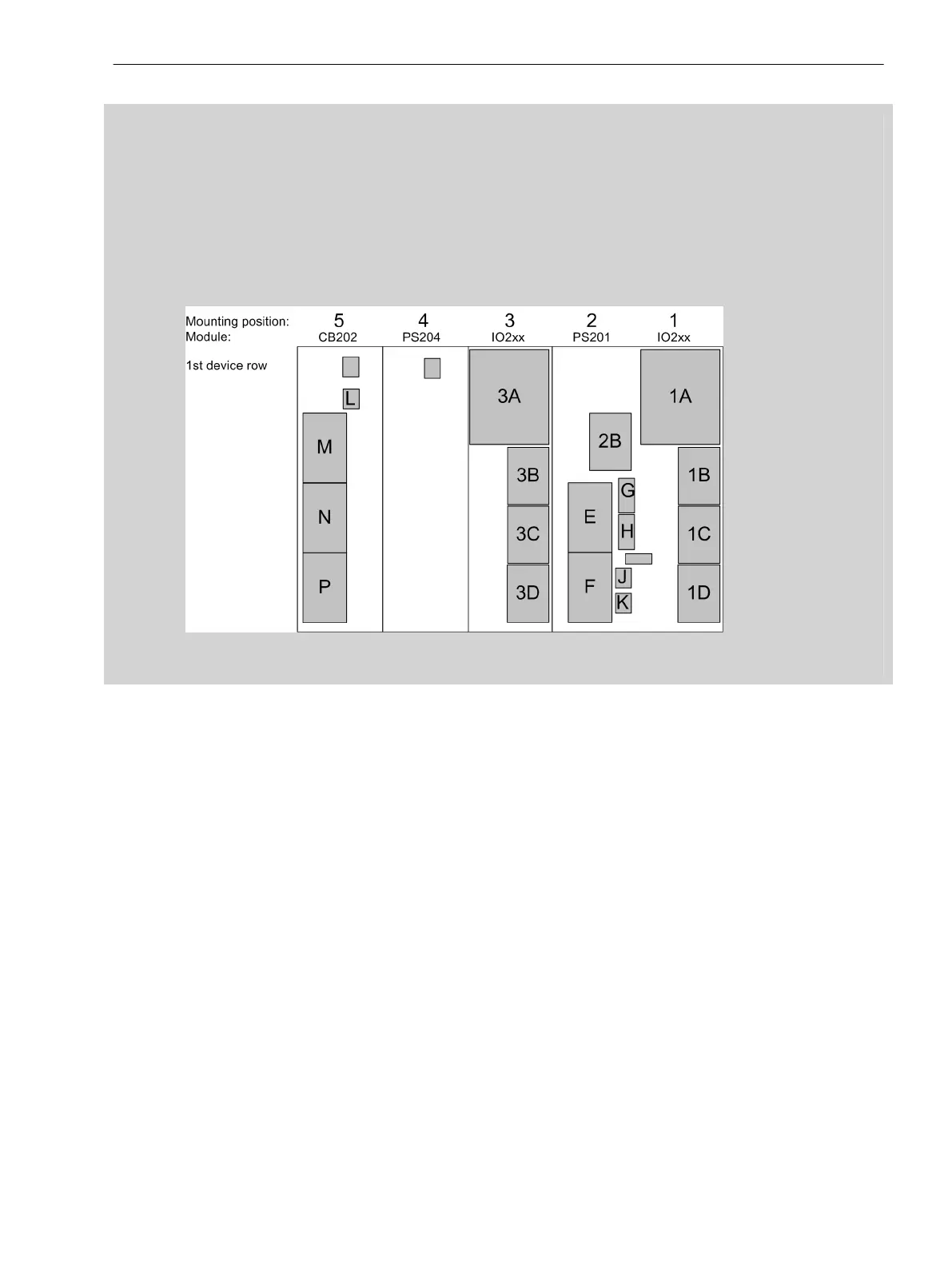

[dw_module_position_PS204_w_CB202, 1, en_US]
Figure 3-11 Arrangement of Modules with PS204 Module and a CB202 – Rear View
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 59
C53000-G5040-C002-J, Edition 08.2020
