Terminal and Connection Diagram
[cdio101x-220513-01.tif, 1, en_US]

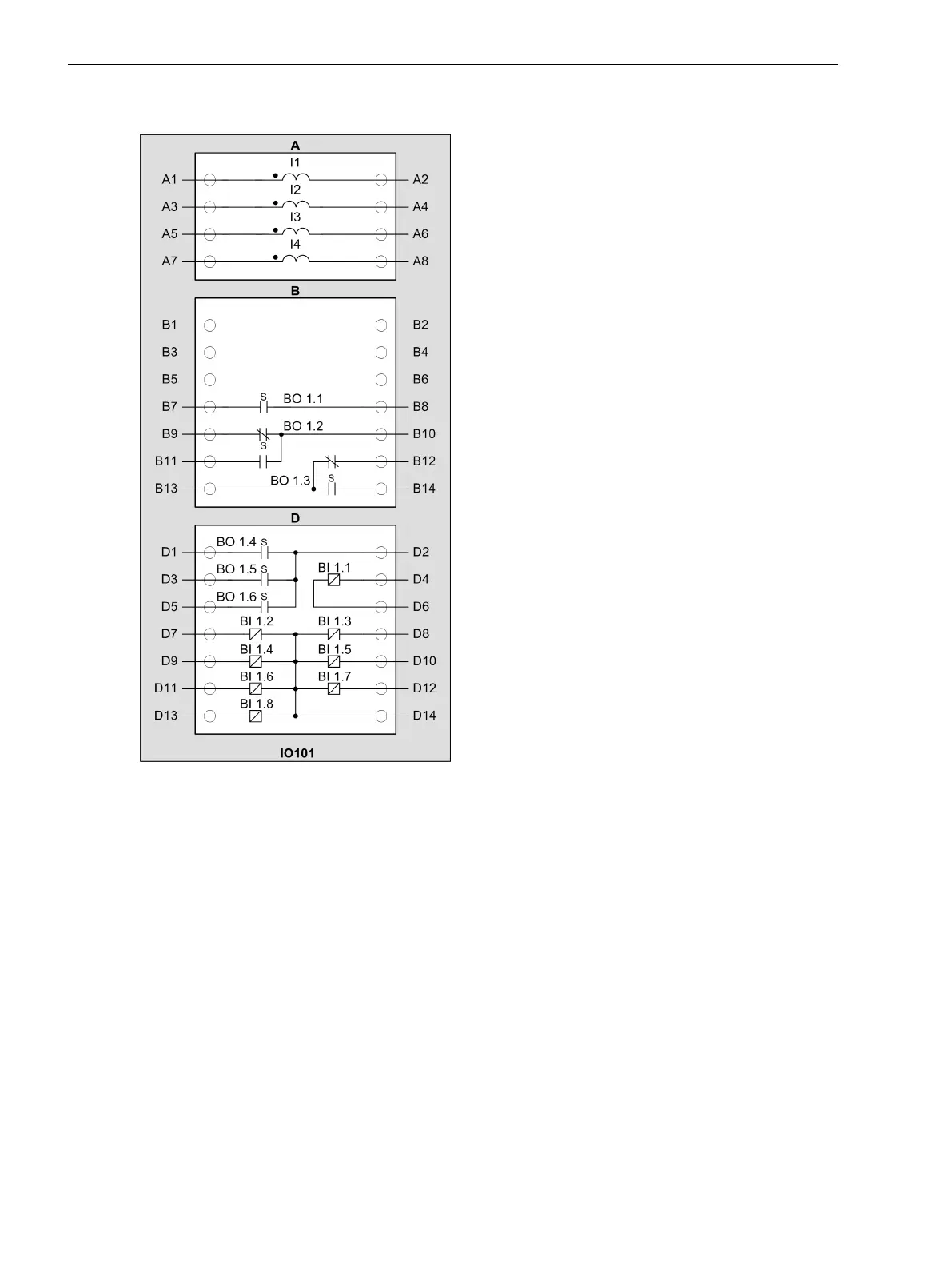

Figure 3-80
IO101 – Terminal Diagram
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
130 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
