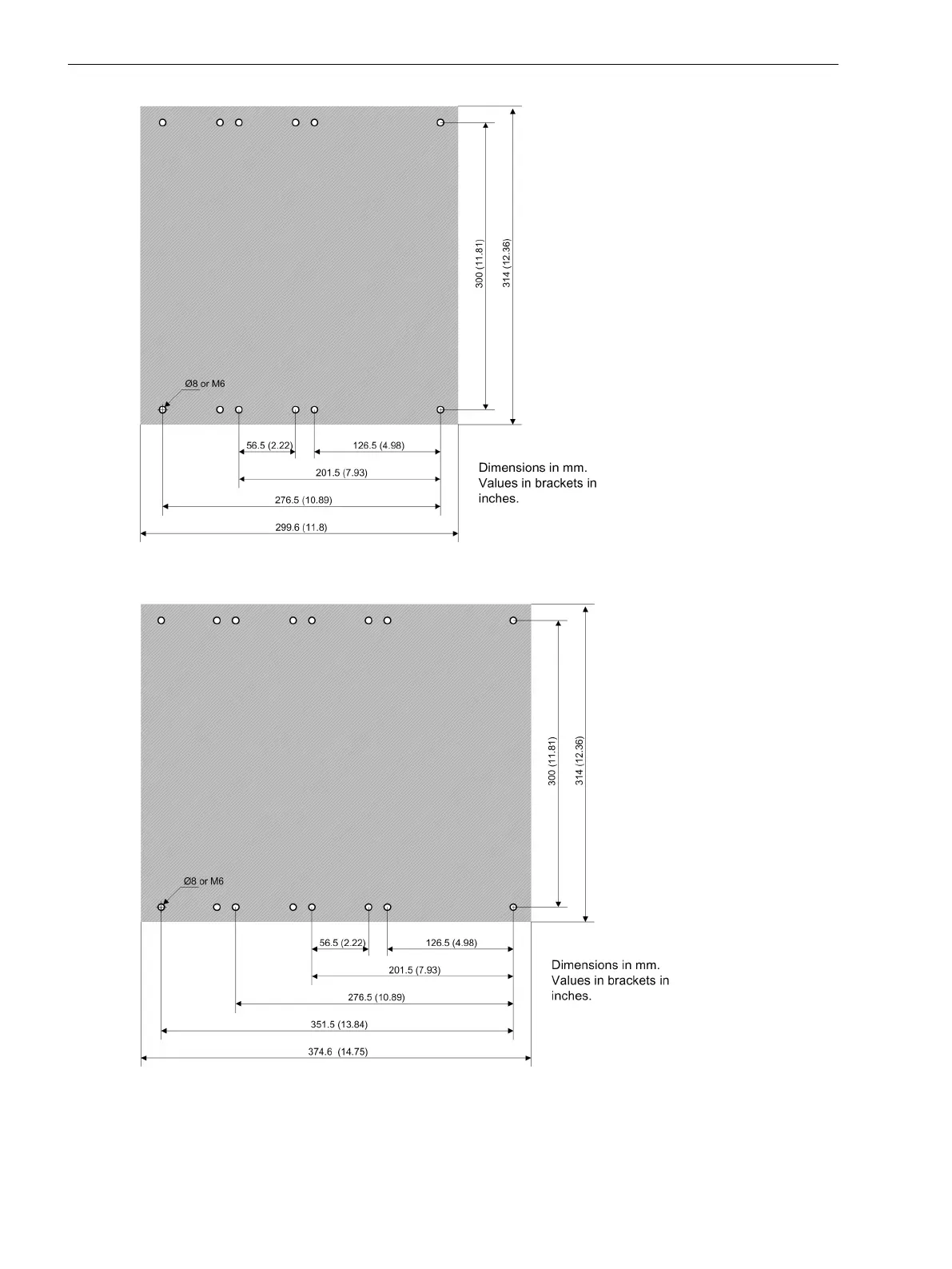

Figure 6-17
Drilling Pattern of a 2/3 Surface-Mounted Device – 1st Device Row
[dwbohrge-5_6.vsd, 2, en_US]
Figure 6-18
Drilling Pattern of a 5/6 Surface-Mounted Device – 1st Device Row
Technical Data
6.14 Assembly Dimensions
258 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
