Surface-Mounted Devices with Integrated On-Site Operation Panel (Non-Modular Device)
[dw_console side view.vsd, 3, en_US]

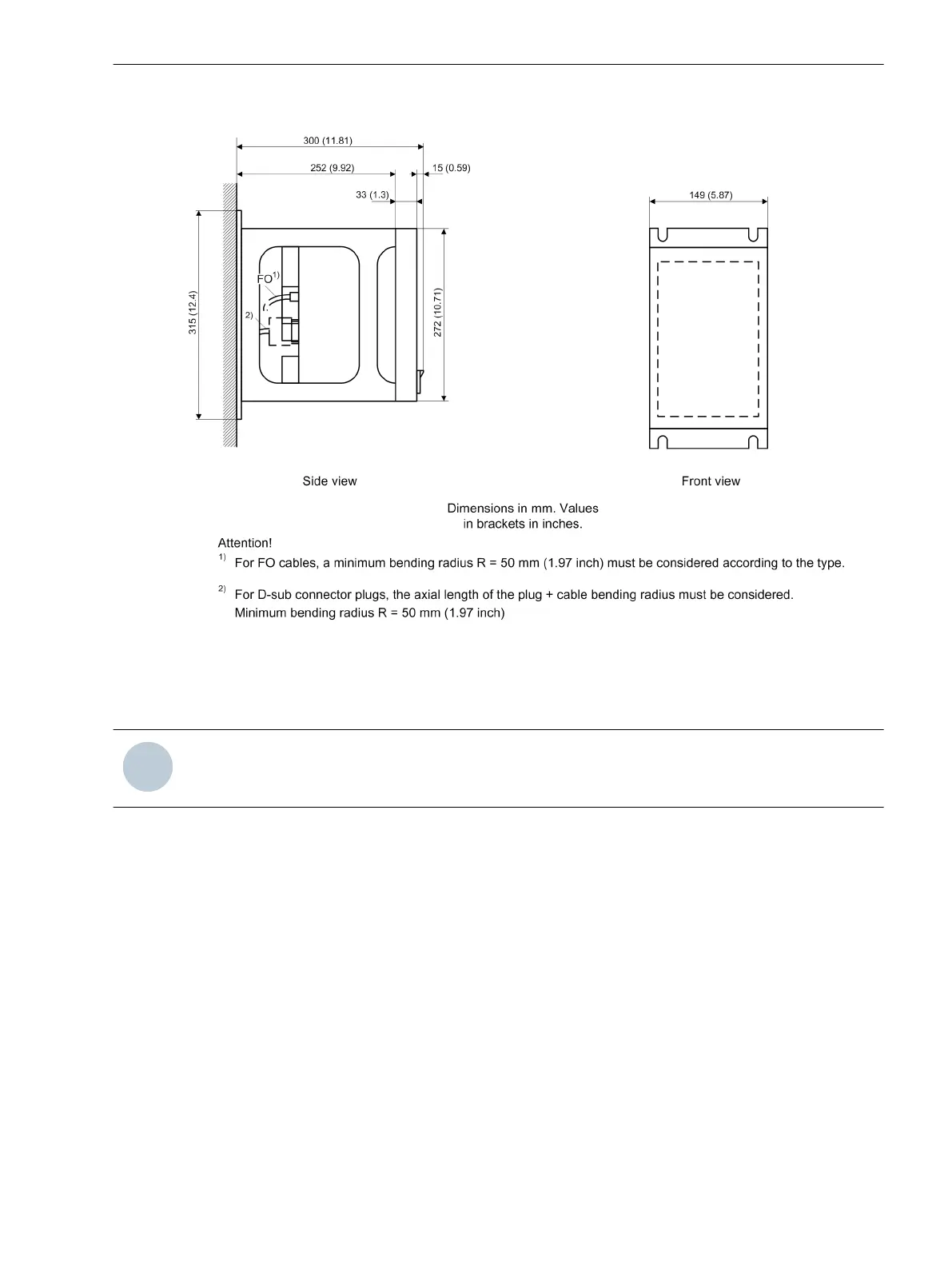

Figure 6-25
Non-Modular Surface-Mounted Device with Integrated On-Site Operation Panel, Dimensions
from the Side and Front Views
Surface-Mounted Devices with Integrated On-Site Operation Panel (Non-Modular Device)
NOTE
For surface-mounted devices, make sure that the drillings fit for a screw of the size M6.
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 263
C53000-G5040-C002-J, Edition 08.2020
