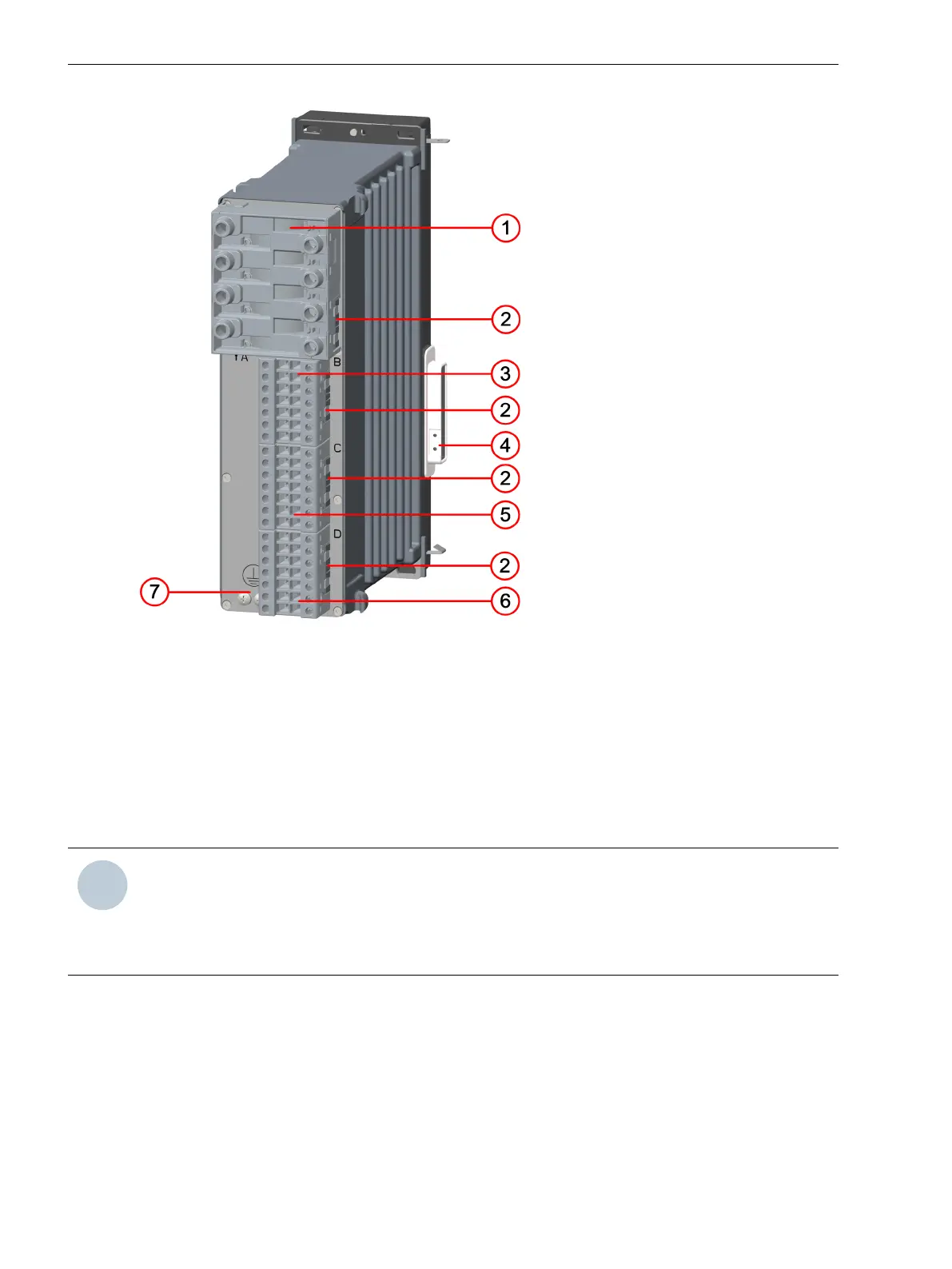

Figure 2-8
Rear View of the Expansion Module
(1) Current terminal xA
(2) Spring clip
(3) Voltage terminal xB
(4) Bus terminal to the base module
(5) Voltage terminal xC
(6) Voltage terminal xD
(7) Protective grounding terminals
NOTE
It is possible to install these modules in the 1st and 2nd device row. x corresponds to the slot in the 19-inch
rack.
Possible values in the 1st device row: x = 3, 4, 5, or 6
Possible values in the 2nd device row: x = 8, 9, 10, 11 or 12
Forms of Devices and On-Site Operation Panels
2.1 Flush-Mounting Devices
28 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
