NOTE
The structure of the 2nd device row is described in chapter 5.2.1.3 Expanding Devices with 2nd Device
Row.
Connection Systems
[le_connection, 1, --_--]

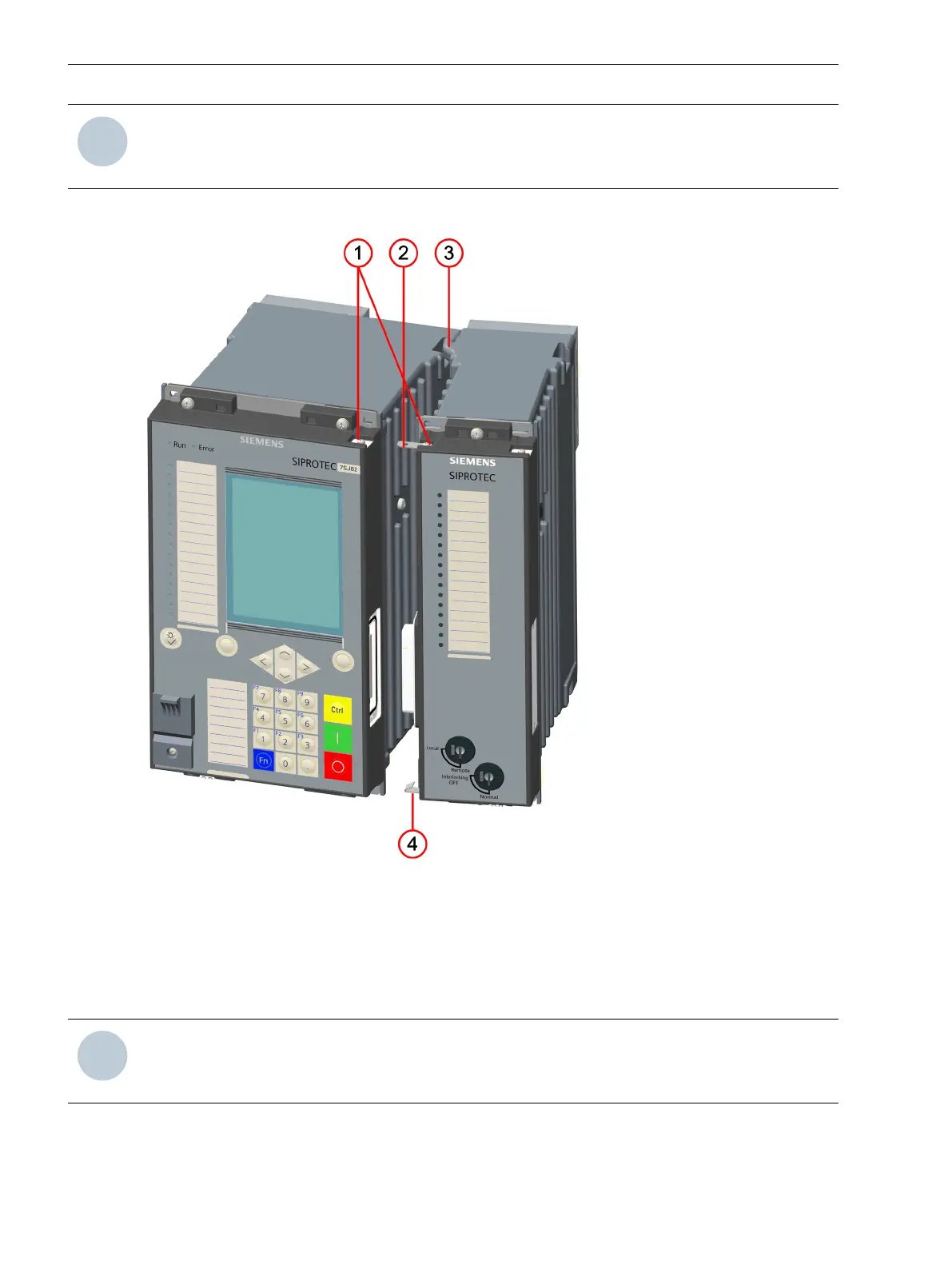

Figure 2-10
Connection Systems
(1) Cut-out for contact tab
(2) Contact tab (prefitted on the expansion module)
(3) Hinged angle clip
(4) Snap-in spring
i
i
NOTE
All on-site operation panels must be connected to one another via the bolt-on contact tabs. The contact
tabs are delivered with the expansion modules.
Forms of Devices and On-Site Operation Panels
2.1 Flush-Mounting Devices
30 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
