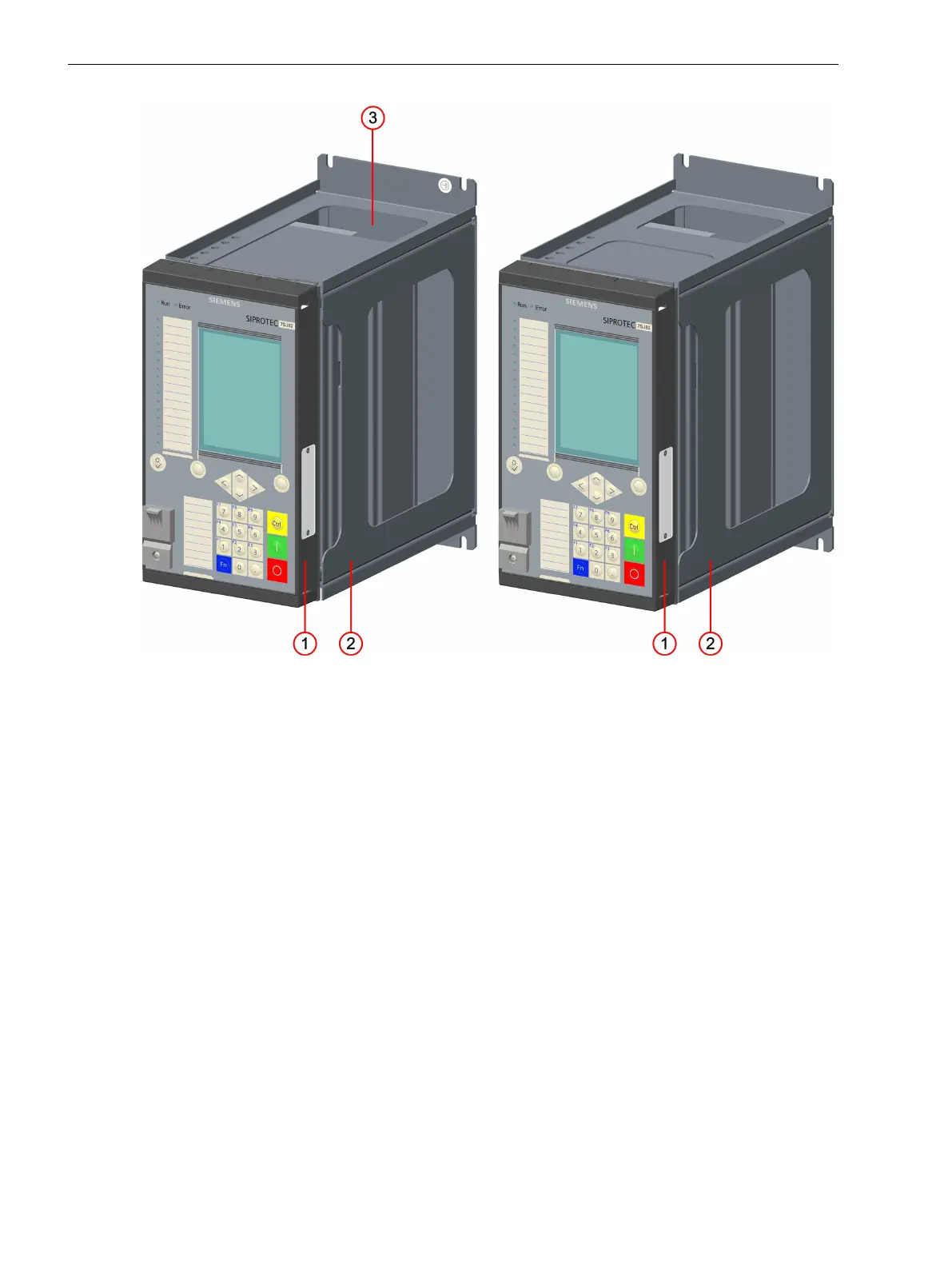

Figure 2-14
Bracket with the Opening Upward (Left) and the Opening Downward (Right)
(1) Flush-mounting device
(2) Bracket for the surface-mounting variant
(3) Bracket opening for cable entry or exit when mounting or dismantling the device
Forms of Devices and On-Site Operation Panels
2.2 Surface-Mounted Devices with Integrated On-Site Operation Panel
