On-Site Operation Panel of Expansion Modules
[le_expansion modules, 1, --_--]

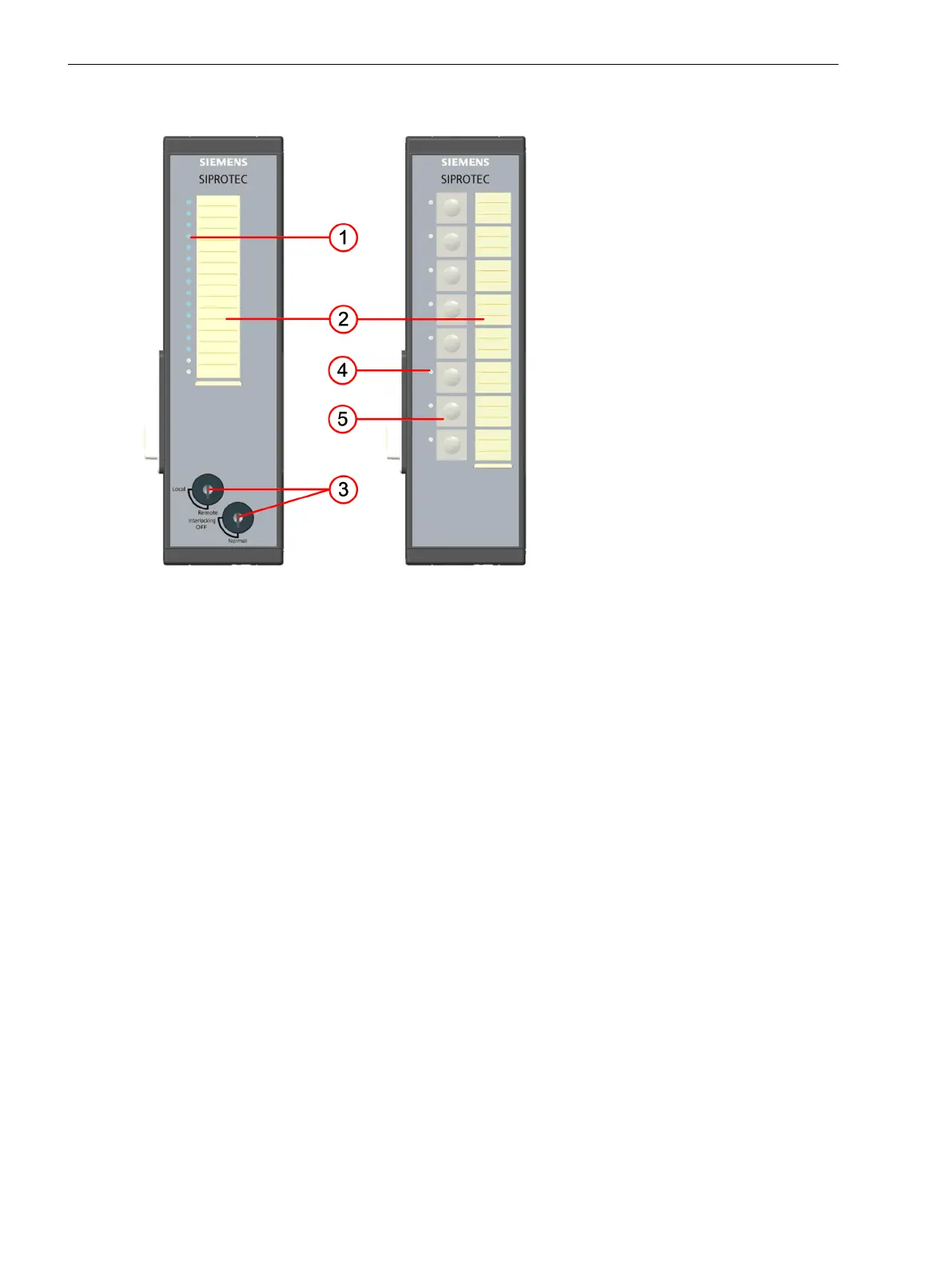

Figure 2-23
Expansion Module
(1) 16 monochrome LEDs
(2) Cover labels
(3) 2 key switches
(4) 8 monochrome LEDs
(5) 8 push-buttons
The on-site operation panels are distinguished by the following characteristics:
•
Flat and compact design
•
16 monochrome parameterizable LEDs
•
Decorative film
•
2 key switches for setting the operating mode
Besides the base module, you can add an expansion module with key switches. The following table explains
the meanings of the switch positions.
