[tdps201x-270812-01.tif, 1, en_US]

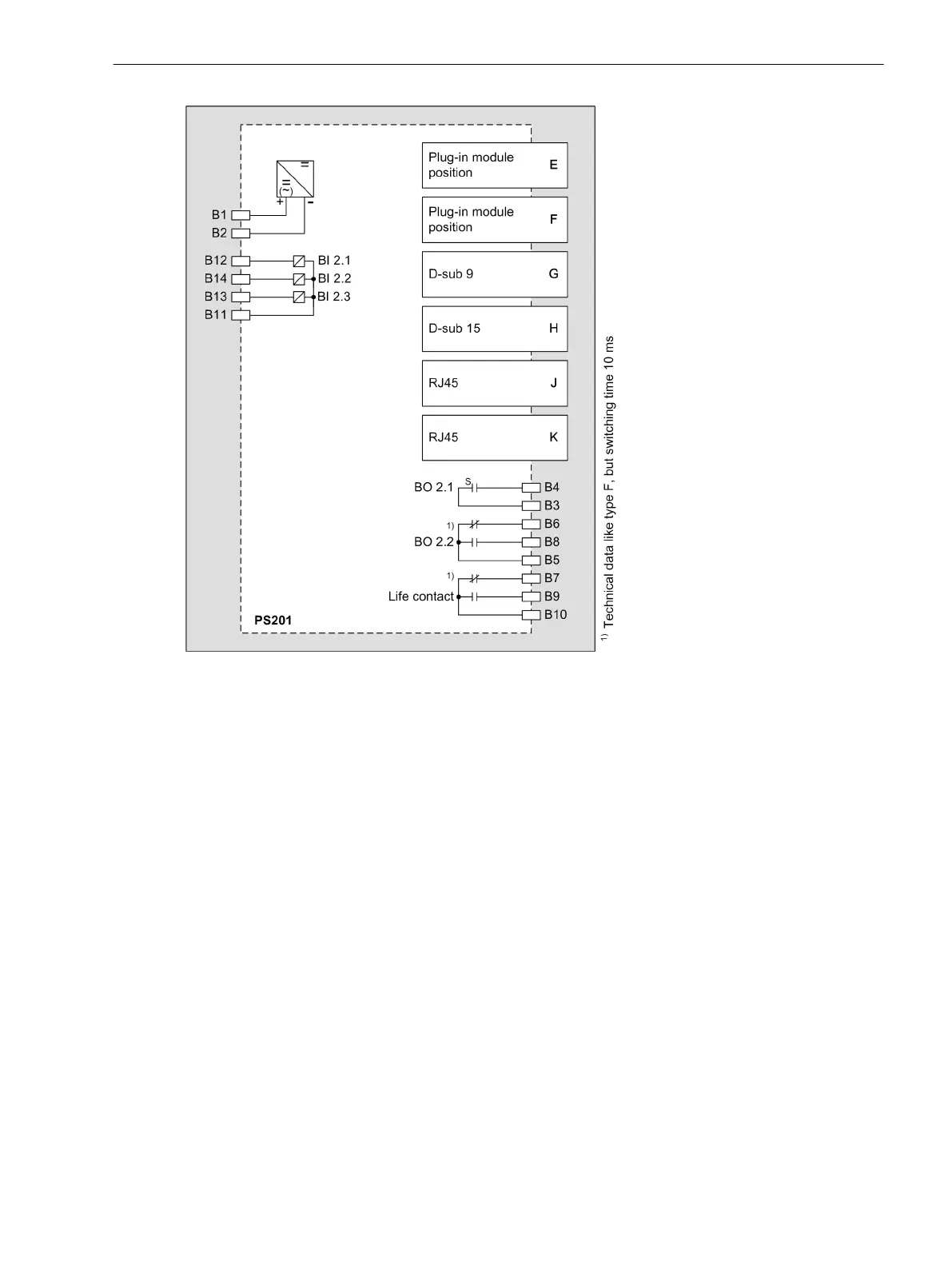

Figure 3-3
PS201 – Connection Diagram
Time-Synchronization Terminal
The terminal for time synchronization is located on the D-sub 9 interface (position G). Time synchronization
signals for DC 5 V, DC 12 V, and DC 24 V can be processed as an option.
For further information on connecting to the time synchronization, see chapter 6.6 Communication Interfaces
in the Technical Data.
On-Site Operation Panel Terminal
The terminal for the on-site operation panel of surface-mounted devices is located on the D-sub 15 interface
(position H). The on-site operation panel of surface-mounted devices with the on-site operation panel inte-
grated or detached is connected to this interface.
For further information on connecting to the on-site operation panel, see chapter 6.6 Communication Inter-
faces in the Technical Data.
Integrated Ethernet Interface J(RJ45)
This terminal is used to load the device with DIGSI 5 using Ethernet. This terminal also enables straightforward
IEC 61850 Ethernet communication or communication with another protocol via Ethernet, for example, for
connecting an external RTD unit.
For further information on the integrated Ethernet interface, see chapter 6.6 Communication Interfaces in the
Technical Data.
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 53
C53000-G5040-C002-J, Edition 08.2020
