Siemens SIPROTEC 5 V8.30 User Manual

Terminal and Connection Diagram
For the binary inputs and outputs, the x corresponds to the slot in the 19-inch rack.
[cdio206x-280812-01.tif, 1, en_US]

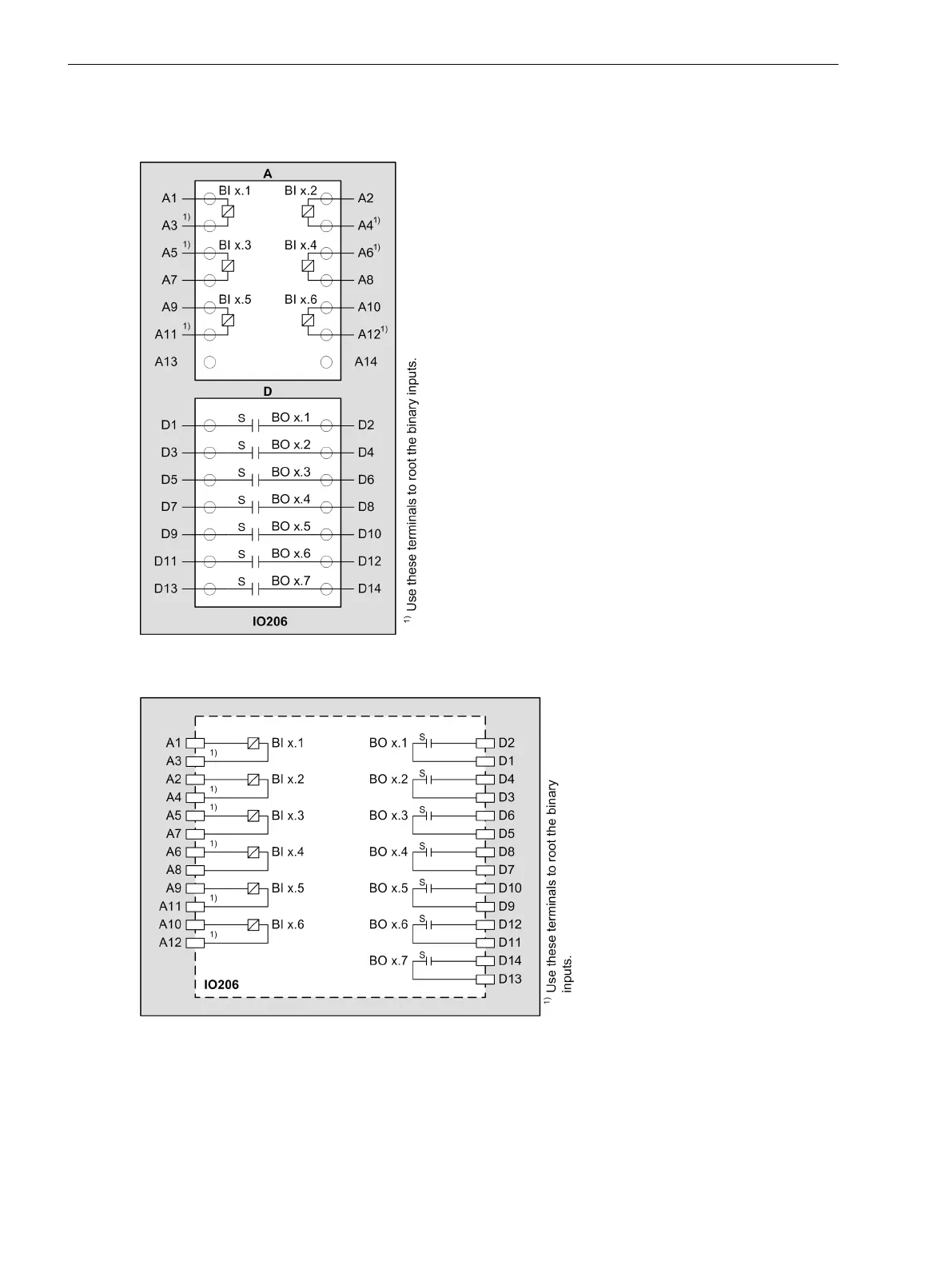

Figure 3-34
IO206 – Terminal Diagram
[tdio206x-050313-02.tif, 1, en_US]
Figure 3-35 IO206 – Connection Diagram
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
82 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
