Siemens SIPROTEC 5 Hardware Description

[dw_example_temp_sensor_2phase, 1, en_US]

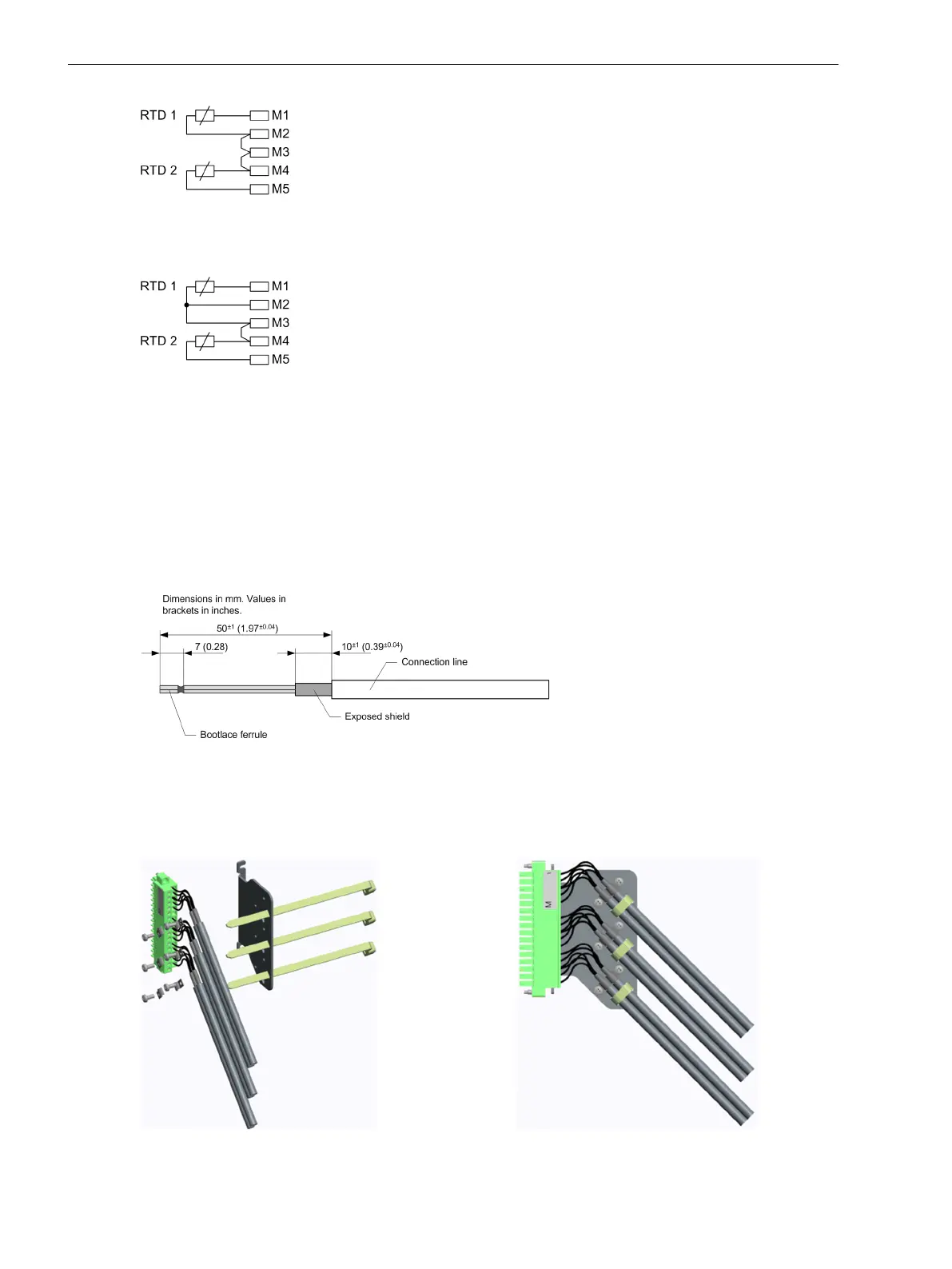

Figure 3-81 Example: Connecting Temperature Sensors RTD 1 (2-Line Terminal) and RTD 2 (2-Line
Terminal) to Terminals M1 to M5
[dw_temperature_sensor, 1, en_US]
Figure 3-82 Example: Connecting Temperature Sensors RTD 1 (3-Line Terminal) and RTD 2 (2-Line
Terminal) to Terminals M1 to M5
Connecting the Lines
When connecting the lines, please proceed as follows:
²
Use shielded lines with shielding braid (3-core AWG 24).
²
Prepare the cable as shown in the following figure.
The dimensions in the drawing are specified to allow insertion of the plug with the shielding plate
screwed on.
[dw_shielded_line, 1, en_US]
Figure 3-83 Preparing the Cable
²
Connect the lines with bootlace ferrules.
²
Use the included clamps and cable ties to provide contact for the shield and strain relief for the cable.
[sc_ shielding_plate _mounting-cutout, 1, --_--]
Figure 3-84 Using Clips and Cable Ties
Electronic Modules
3.4 Input and Output Modules of the Non-Modular Devices (7xx82)
124 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
