Siemens SIPROTEC 5 Hardware Description

[le_slots and communication terminals, 1, --_--]

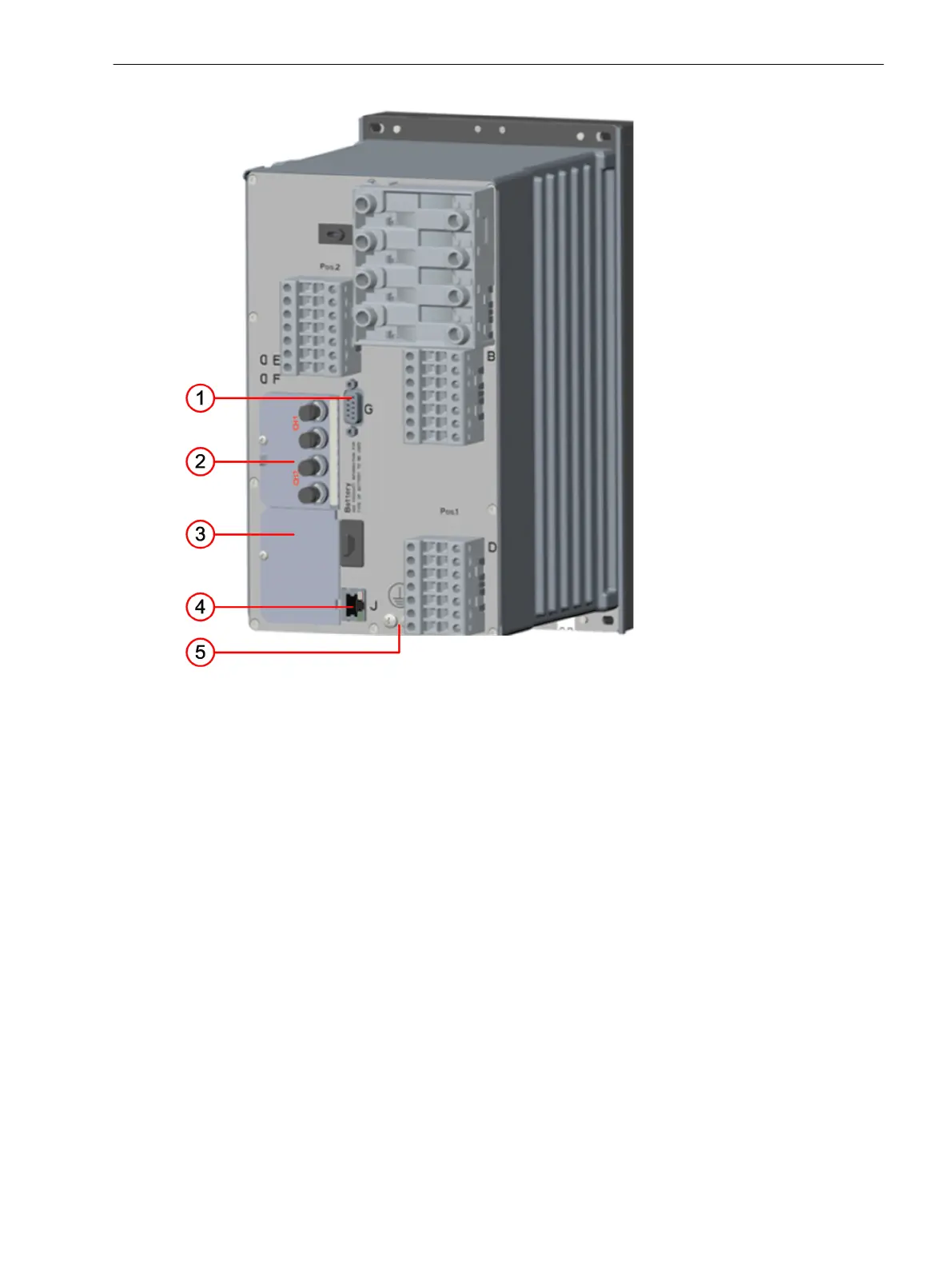

Figure 4-3
Plug-In Module Positions and Communication Terminals on the 1/3 Module, for Non-Modular
Devices (7xx82)
(1) Time synchronization G
(2) Plug-in module position E
(3) Plug-in module position F
(4) Integrated Ethernet interface J
(5) Protective grounding terminal
The following communication modules can be used for SIPROTEC 5:
•
Serial modules
Application: Communication to the substation automation technology via substation-control protocols
Protection interface (only optical serial modules) for interfacing to external communication converters for
short direct connections.
2 different communication protocols or 2 different applications can be operated on serial modules with 2
connections. The IEC 60870-5-103 protocol for the substation automation technology as well as a protec-
tion interface, for example, can be operated on a serial optical module for close range with 2 connec-
tions.
Assign the protocol application to the corresponding channel of the communication module with DIGSI 5.
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 131
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
