Siemens SIPROTEC 5 Hardware Description

[dw_drilling non modular surface mounting with several consoles, 1, en_US]

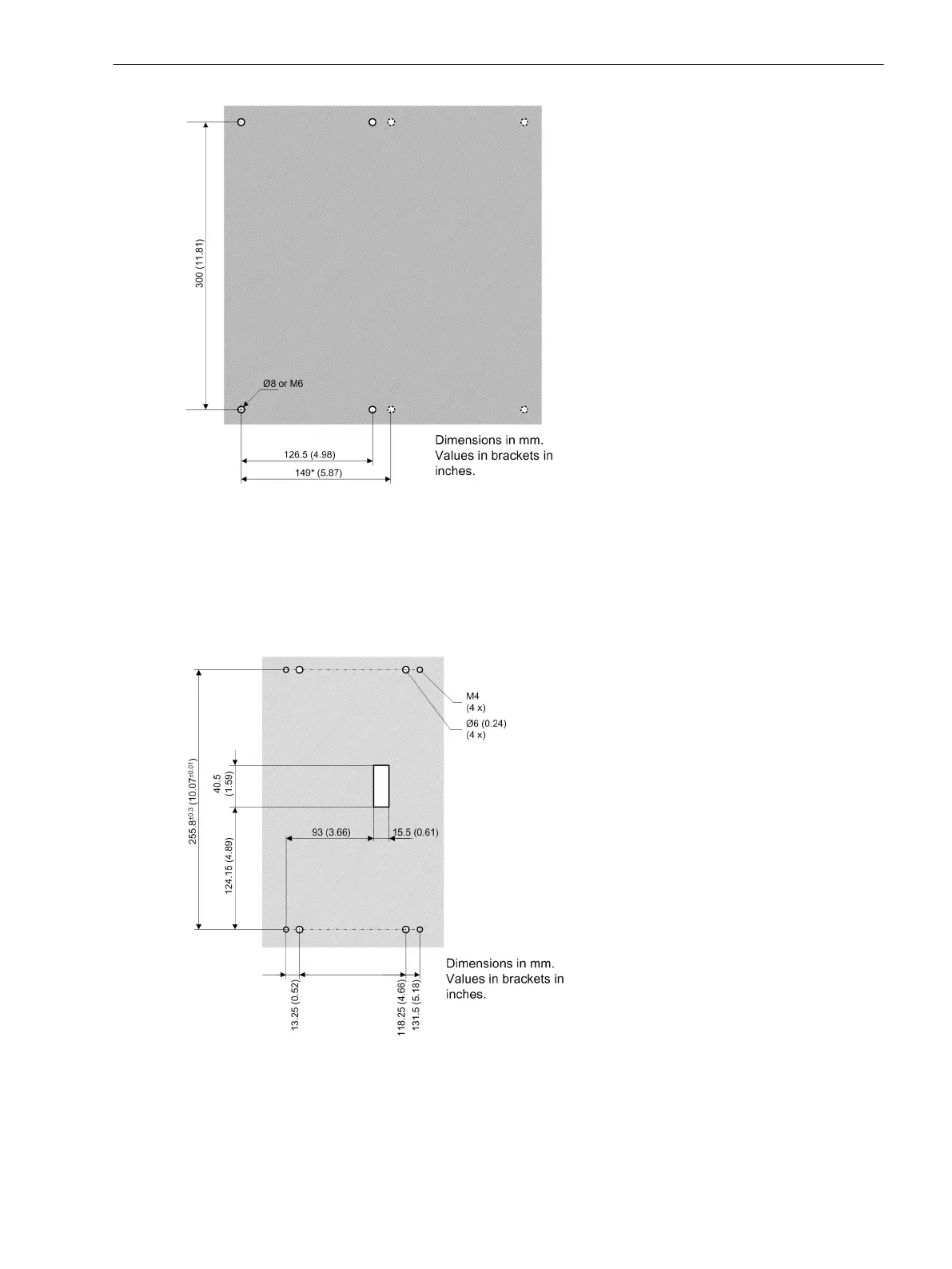

Figure 6-26 Drilling Pattern of a Non-Modular Surface-Mounted Device - Several Consoles
* The 149 mm are valid if several mounted consoles are to be mounted next to each other.
Surface-Mounted Devices with Detached On-Site Operation Panel
You can find more information on the drilling patterns for the devices in section Surface-Mounted Devices
with Integrated On-Site Operation Panel (Modular Device) , Page 223.
[dw_z1_osop_1-3, 1, en_US]
Figure 6-27 Drilling Pattern of the On-Site Operation Panel of the 1/3 Device
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 231
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
