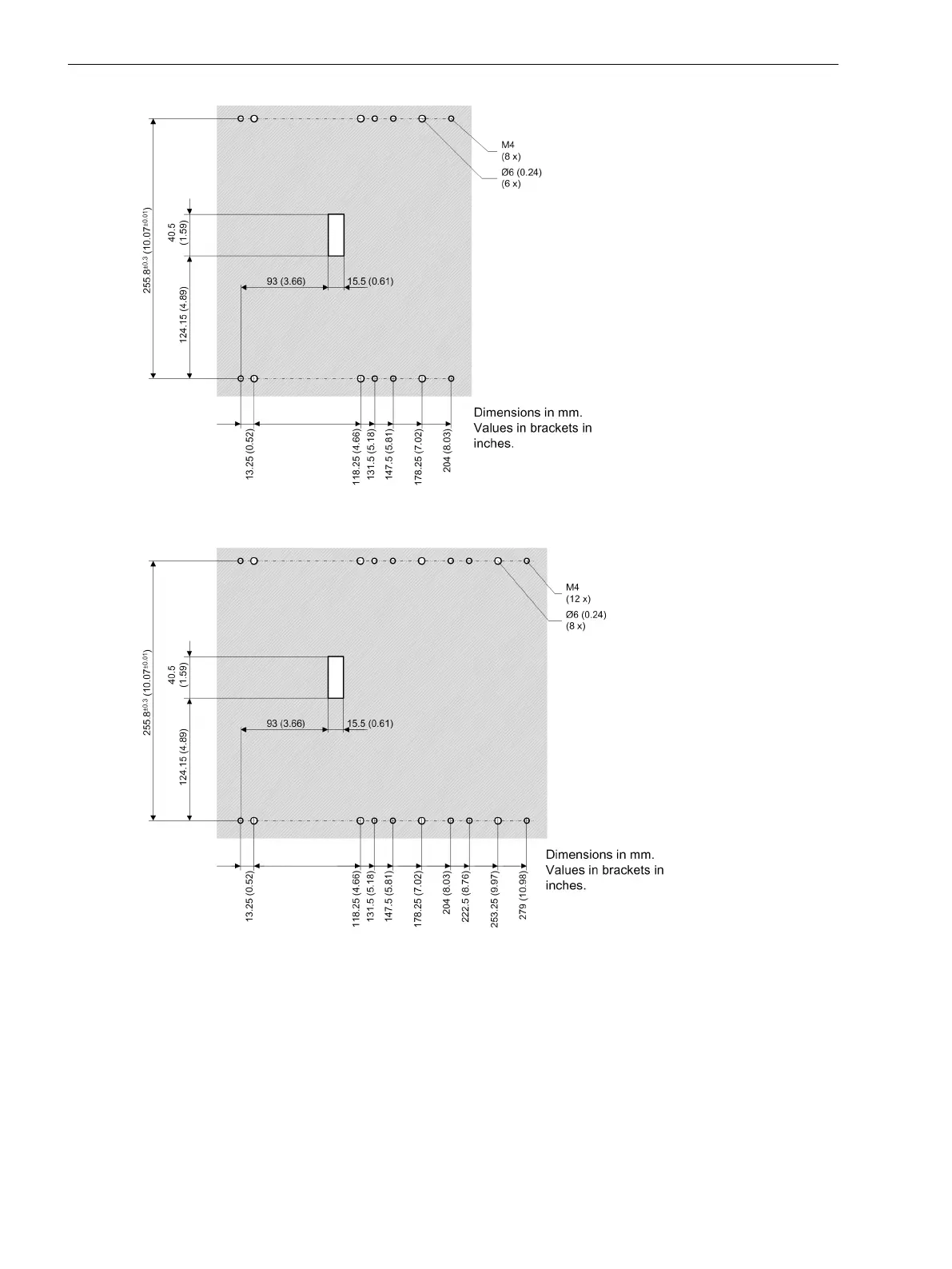

Siemens SIPROTEC 5

Integrated Power Supply
Power consumption (life relay active)
– DC AC 230 V/50 Hz AC 115 V/50 Hz
1/3 module, non-modular
Without plug-in modules
7 W 16 VA 12.5 VA
1/3 base module, modular
Without plug-in modules
13 W 55 VA 40 VA
1/6 expansion module 3 W 6 VA 6 VA
1/6 plug-in module
assembly without plug-in
modules (modules CB202)
3.5 W 14 VA 7 VA
Plug-in module for base
module or plug-in module
assembly (for example,
communication module)
< 5 W < 6 VA < 6 VA
Stored-energy time for auxiliary voltage outage or
short circuit, modular devices
IEC 61000-4-11
IEC 61000-4-29
For V ≥ DC 24 V ≥ 50 ms
For V ≥ DC 110 V ≥ 50 ms
For V ≥ AC 115 V ≥ 50 ms
Stored-energy time for auxiliary voltage outage or
short circuit, non-modular devices
IEC 61000-4-11
IEC 61000-4-29
For V ≥ DC 24 V ≥ 20 ms
For V ≥ DC 60 V ≥ 50 ms
For V ≥ AC 115 V ≥ 200 ms
Technical Data
6.2 Supply Voltage
232 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
