Siemens SIPROTEC 5

[dw_z2_5-6, 3, en_US]

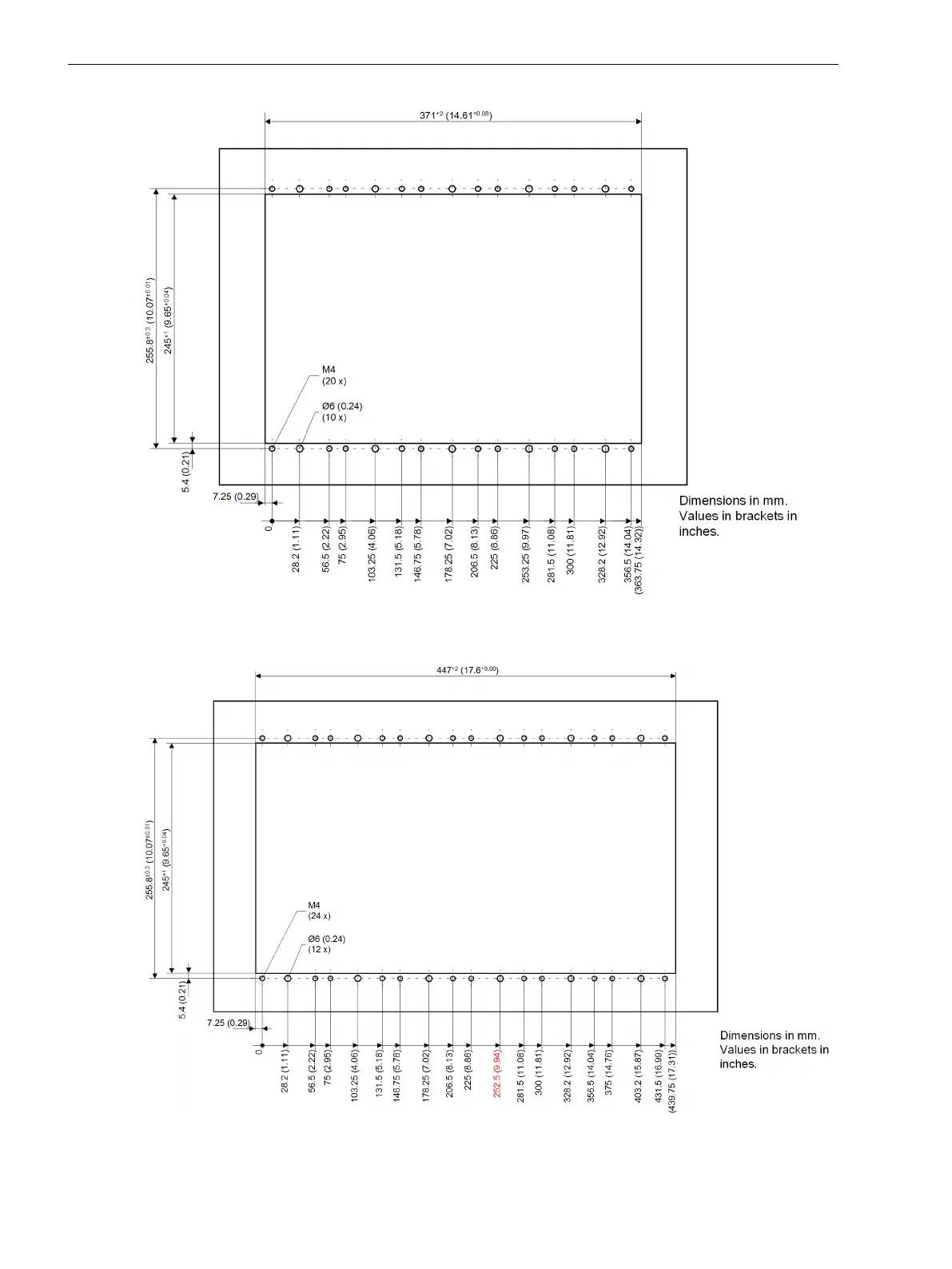

Figure 6-9
Cut-out Widths and Drilling Pattern - 5/6 Device, 2nd Device Row
[dw_z2_6-6, 4, en_US]
Figure 6-10
Cut-out Widths and Drilling Pattern - 1/1 Device, 2nd Device Row
Technical Data
6.14 Assembly Dimensions
262 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
