Siemens SIPROTEC 5

[dw_first and second device row, 1, en_US]

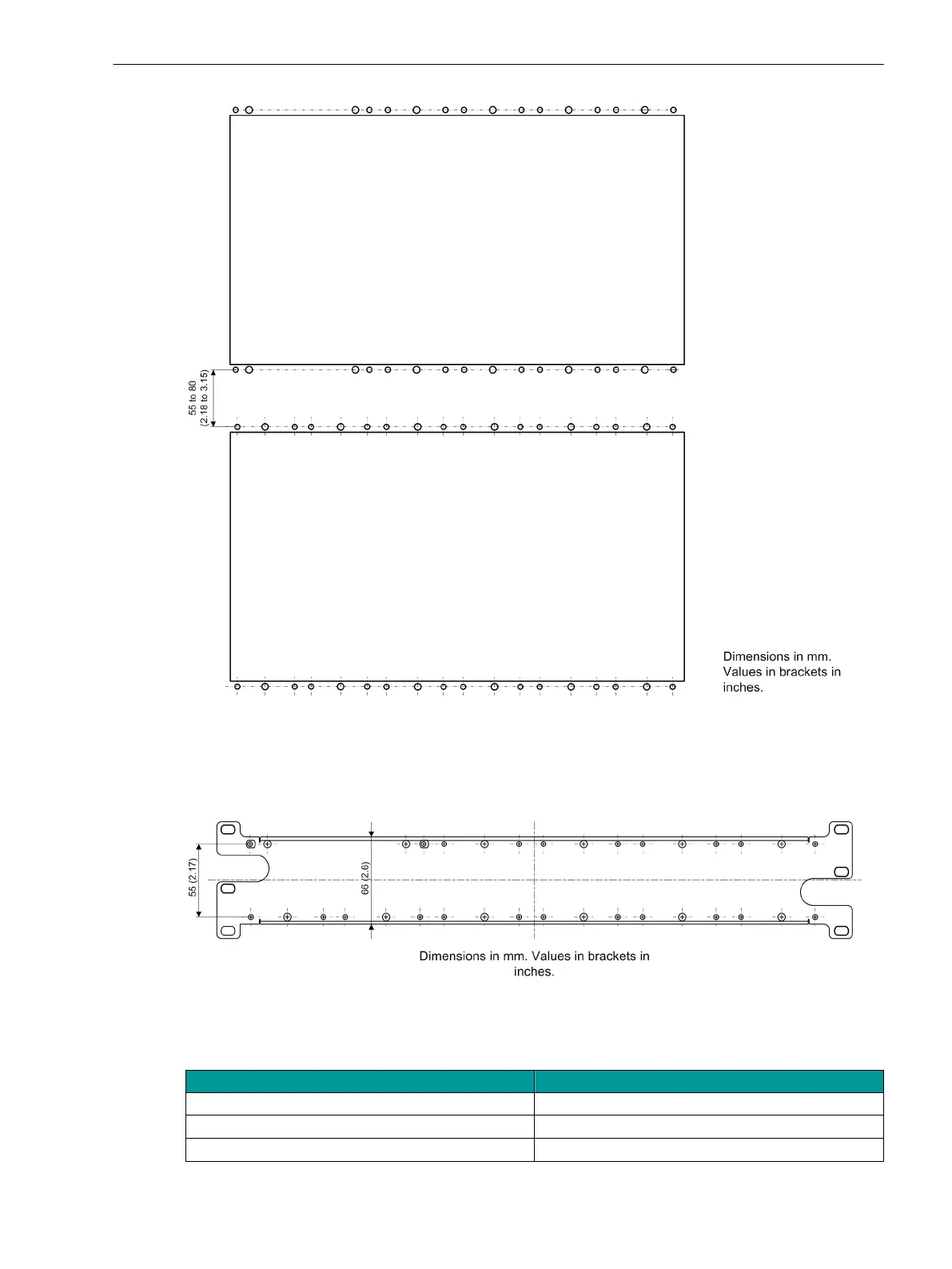

Figure 6-11
Drilling Pattern - 1/1 Device, 1st and 2nd Device Row
Siemens recommends a hole spacing of at least 55 mm (2.17 in) between the 1st and 2nd device rows. The
maximum spacing may be about 80 mm (3.15 in) due to the length of the connecting cable. The length of the
cable is 890 mm (35.04 in) from the center of the plug to the center of the connector.
[dw_angle rail, 1, en_US]
Figure 6-12 Angle Rail for Connecting the 1st and 2nd Device Row
Table 6-8 Cut-Out Widths
Width of the Mounting Opening
1/3 device (base module)
146
+2
mm (5.75
+0.08
)
1/2 device (base module with one expansion module)
221
+2
mm (8.7
+0.08
)
2/3 device (base module with 2 expansion modules)
296
+2
mm (11.65
+0.08
)
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 263
C53000-G5040-C002-N, Edition 04.2022
