Siemens SIPROTEC 5

Width of the Mounting Opening
5/6 device (base module with 3 expansion modules)
371
+2
mm (14.61
+0.08
)
1/1 device (base module with 4 expansion modules)
447
+2
mm (17.6
+0.08
)
Table 6-9 Variable Housing Widths
Dimension a
Housing Widths in mm (in Inches)
(Total Width = Housing Width + 5 mm (0.2 in))
1/3 device 145 (5.71)
1/2 device 220 (8.66)
2/3 device 295 (11.61)
5/6 device 370 (14.57)
1/1 device 445 (17.52)
[dw_surface_mounting_in_SIP5Comp, 4, en_US]

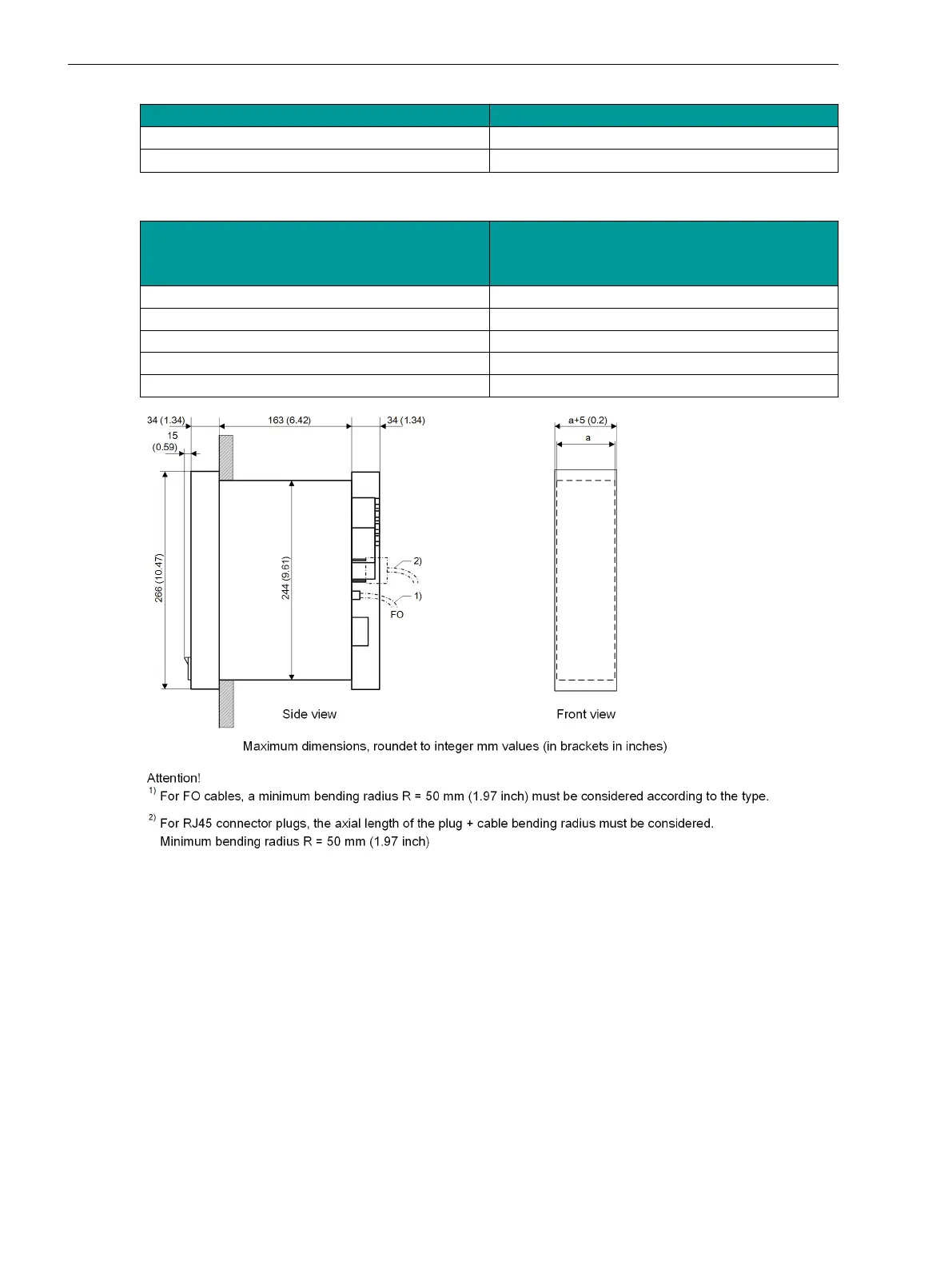

Figure 6-13
Flush-Mounting Devices, Dimensions from the Side and Front Views
Technical Data
6.14 Assembly Dimensions
264 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
