3.3 Commissioning
295
7SD610 Manual
C53000-G1176-C145-4

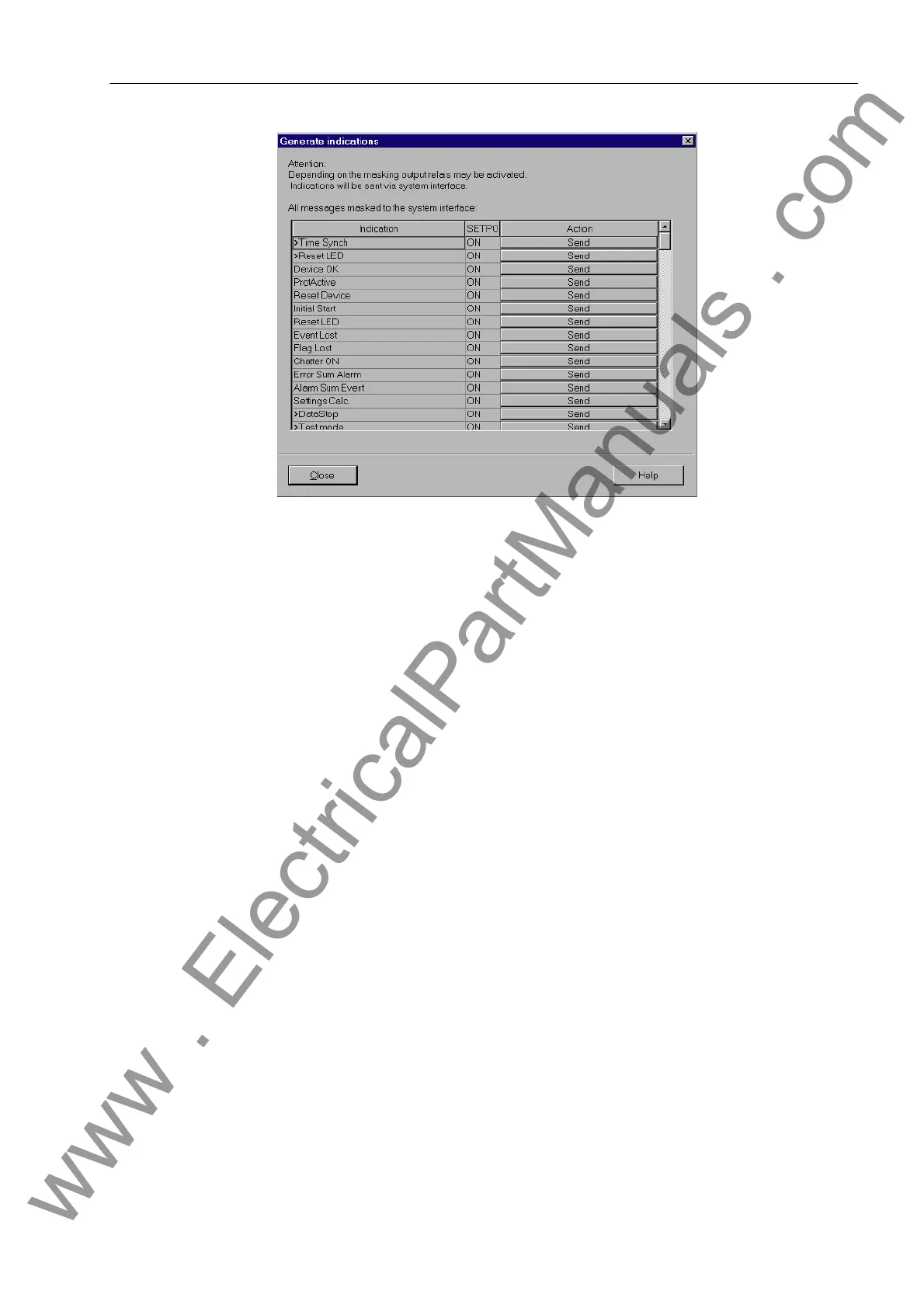

Figure 3-16 System interface test with dialog box: Generating indications – Example
Changing the Oper-
ating State
On clicking one of the buttons in the column Action you will be prompted for the pass-
word No. 6 (for hardware test menus). After correct entry of the password, individual
annunciations can be initiated. To do so, click on the button Send in the corresponding
line. The corresponding message is issued and can be read out either from the event
log of the SIPROTEC 4 device or from the substation control center.
Further tests remain enabled until the dialog box is closed.
Test in Indication
Direction
For all information that is transmitted to the central station, test in Setpoint the desired
options in the list which appears:
• Make sure that each checking process is carried out carefully without causing any
danger (see above and refer to DANGER!)
• Click on Send and check whether the transmitted information reaches the control
centre and shows the desired reaction. Data which are normally linked via binary
inputs (first character „>“) are likewise indicated to the control centre with this pro-
cedure. The function of the actual binary inputs is tested separately.
Exiting the Test
Mode
To end the System Interface Test, click on Close. The dialog box closes. The proces-
sor system is restarted, then the device is ready for operation.
Test in Command
Direction
Data which are normally linked via binary inputs (first character „>“) are likewise
checked with this procedure. The information transmitted in command direction must
be indicated by the central station. Check whether the reaction is correct.
