2 Functions
242
7SD610 Manual
C53000-G1176-C145-4

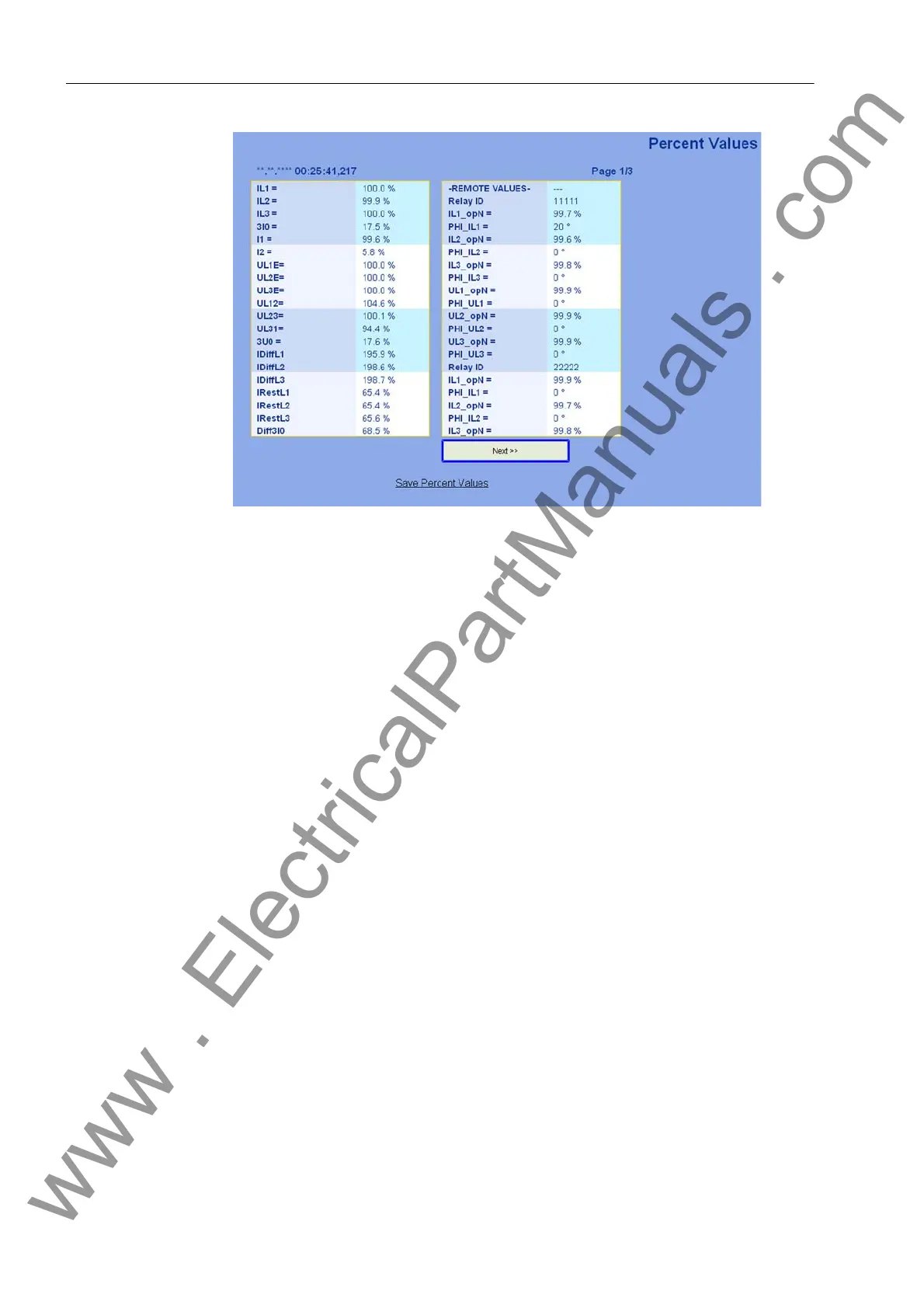

Figure 2-108 List of measured percentage values with given angle differences – Example
The following types of indications can be retrieved and displayed with the WEB-
Monitor
• Operational indications (buffer: event log)
• Fault indications (buffer: trip log)
• Spontaneous Indications
You can print these lists with the „Print event buffer“ button.
2.17.1.2 Setting Notes
The parameters of the WEB-Monitor can be set separately for the front operator inter-
face and the service interface. The relevant IP address of the interface is the one that
is used for communication with the PC and the WEB-Monitor.
Make sure that the 12-digit IP address valid for the browser is set correctly via DIGSI
in the format ***.***.***.***.
2.17.2 Processing of Messages
After the occurrence of a system fault, data regarding the response of the protective
relay and the measured quantities should be saved for future analysis. For this reason
message processing is done in three ways:
2.17.2.1 Function Description
Indicators and
Binary Outputs
(Output Relays)
Important events and states are displayed by LEDs on the front cover. The device also
contains output relays for remote signaling. Most indications and displays can be con-
figured differently from the delivery default settings (for information on the delivery
