2.17 Additional Functions
241
7SD610 Manual
C53000-G1176-C145-4

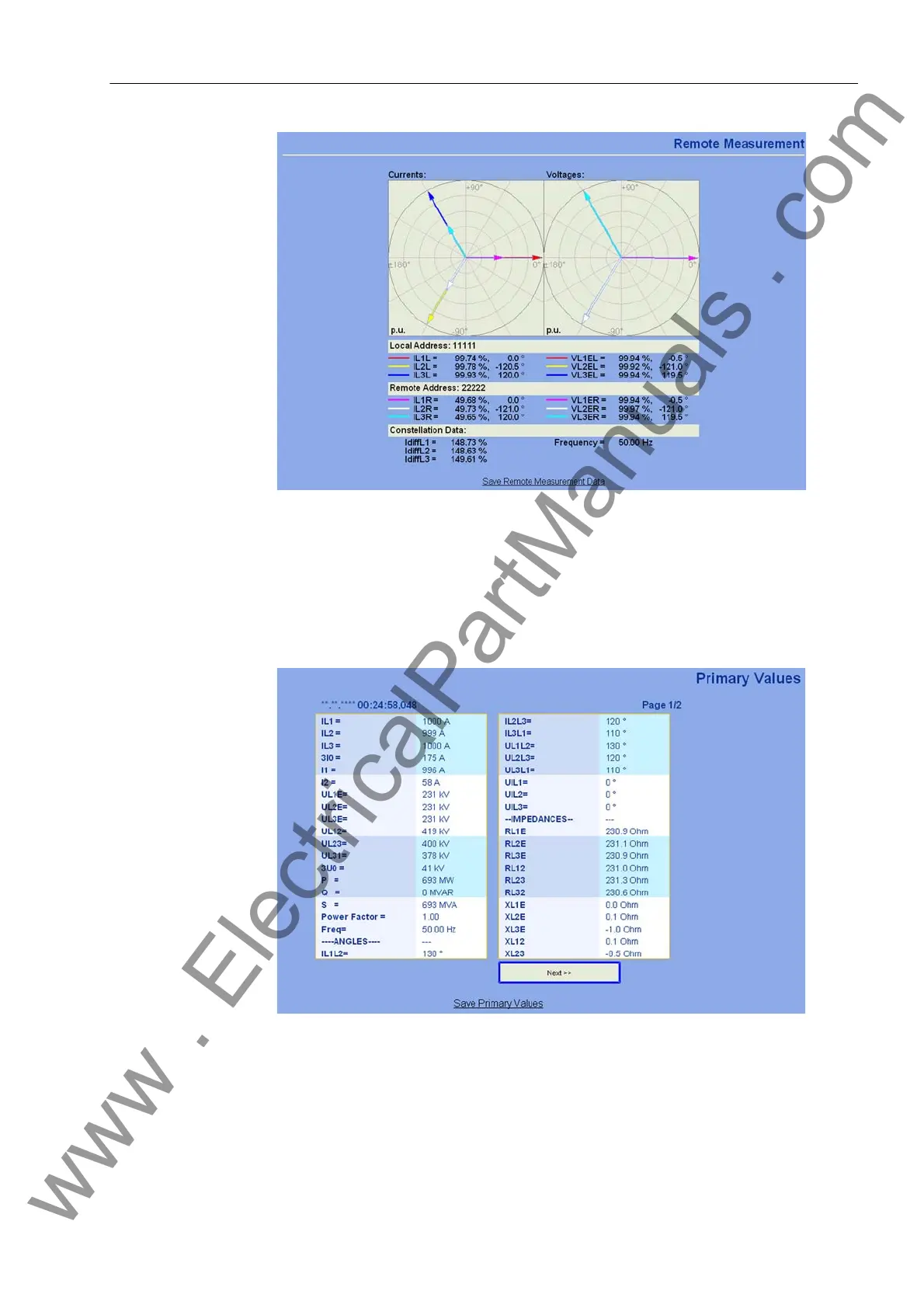

Figure 2-106 WEB-Monitor – Example of voltages and currents
Furthermore, the browser enables a clear display of the most important measured
data. The measured values list can be selected from the navigation toolbar separately
for the local and the remote device. In each case a list with the desired information is
displayed (see Figures 2-106 and 2-108).
Figure 2-107 Local measured values in the WEB-Monitor — Examples for measured values
