SIRIUS 3RT2 contactors/contactor assemblies
2.9 Dimension drawings (dimensions in mm)
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
287
2.9 Dimension drawings (dimensions in mm)
Note
All dimensions are specified in mm.
2.9.1 Contactors and contactor relays (size S00)
3RT2.1.-1 contactors (3-pole) and 3RH21..-1 contactor relays (4-pole) in screw-type connection
system with accessories mounted











1 Laterally mountable auxiliary switch block 3RH2911-1DA..
2 Auxiliary switch block for mounting on the front 3RH2911-1FA.. / -1GA.. / -1HA.. / -1NF..

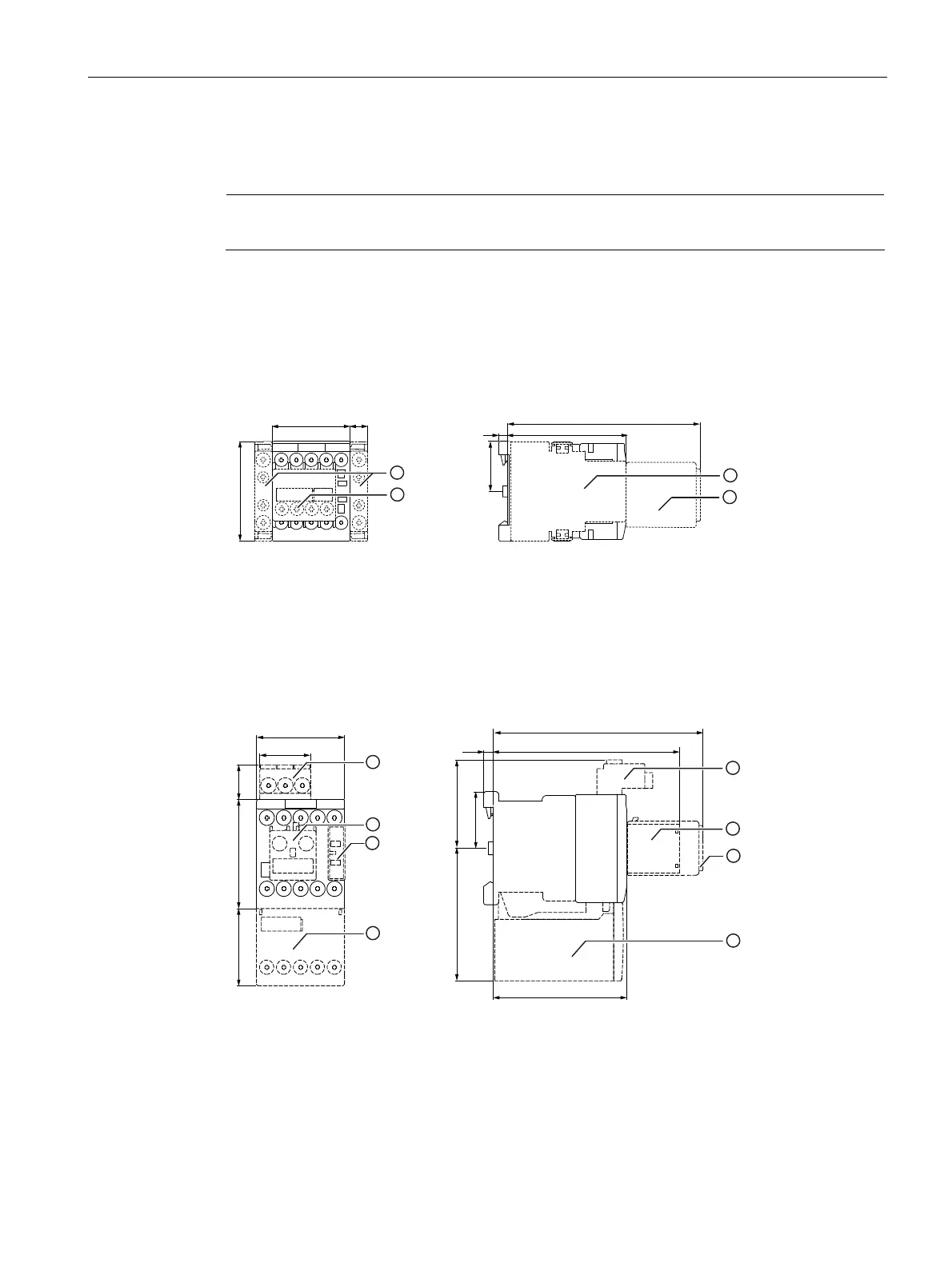

Figure 2-37 3RT2.1.-1 contactor and 3RH21..-1 contactor relays (screw-type connection system) with
auxiliary switch blocks mounted




















3 3-phase infeed terminal 3RA2913-3K
4 Surge suppressor 3RT2916-1...
5 Auxiliary switch block for mounting on the front 3RH2911-1AA.. / -1BA..
6 EMC suppression module 3RT2916-1P..
Figure 2-38 3RT2.1.-1 contactors and 3RH21..-1 contactor relays (screw-type connection system)
with accessories mounted
