8.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
750 System Manual, 01/2011, A8E56203870002-03
8.11 Dimension drawings (dimensions in mm)
Note
All dimensions are specified in mm.
8.11.1 Dimension drawings for 3RR21 Basic analog setting current monitoring relay

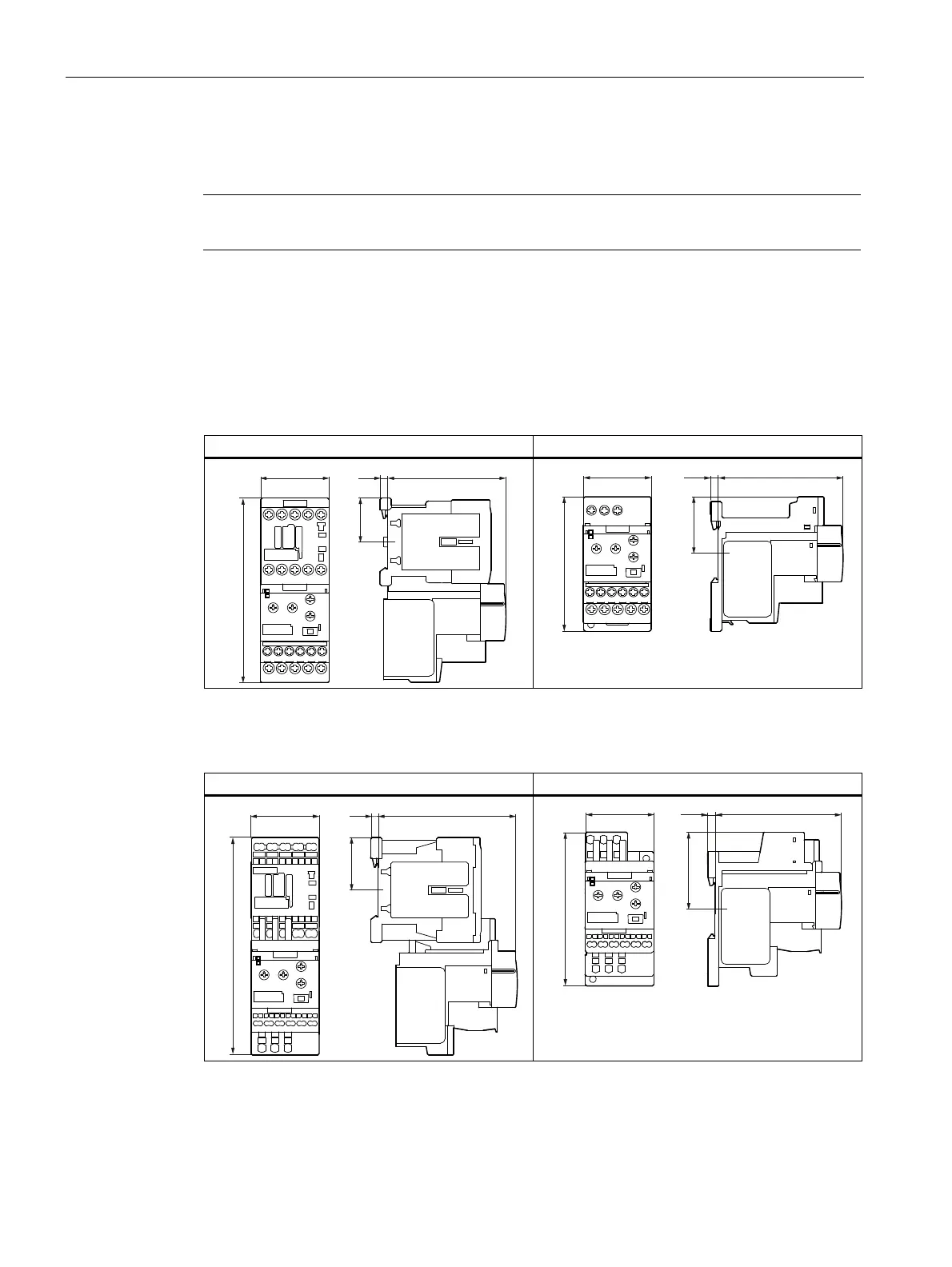

3RR2141-1A.30 (screw connection, S00)
With contactor With terminal support for stand-alone assembly










3RR2141-2A.30 (spring-loaded connection, S00)
With contactor With terminal support for stand-alone assembly










