4.9.7.2 Mounting UL 508 "type E" terminals
The 3RV2928-1H terminal block can only be mounted on a motor starter protector using
screw-type connection system.

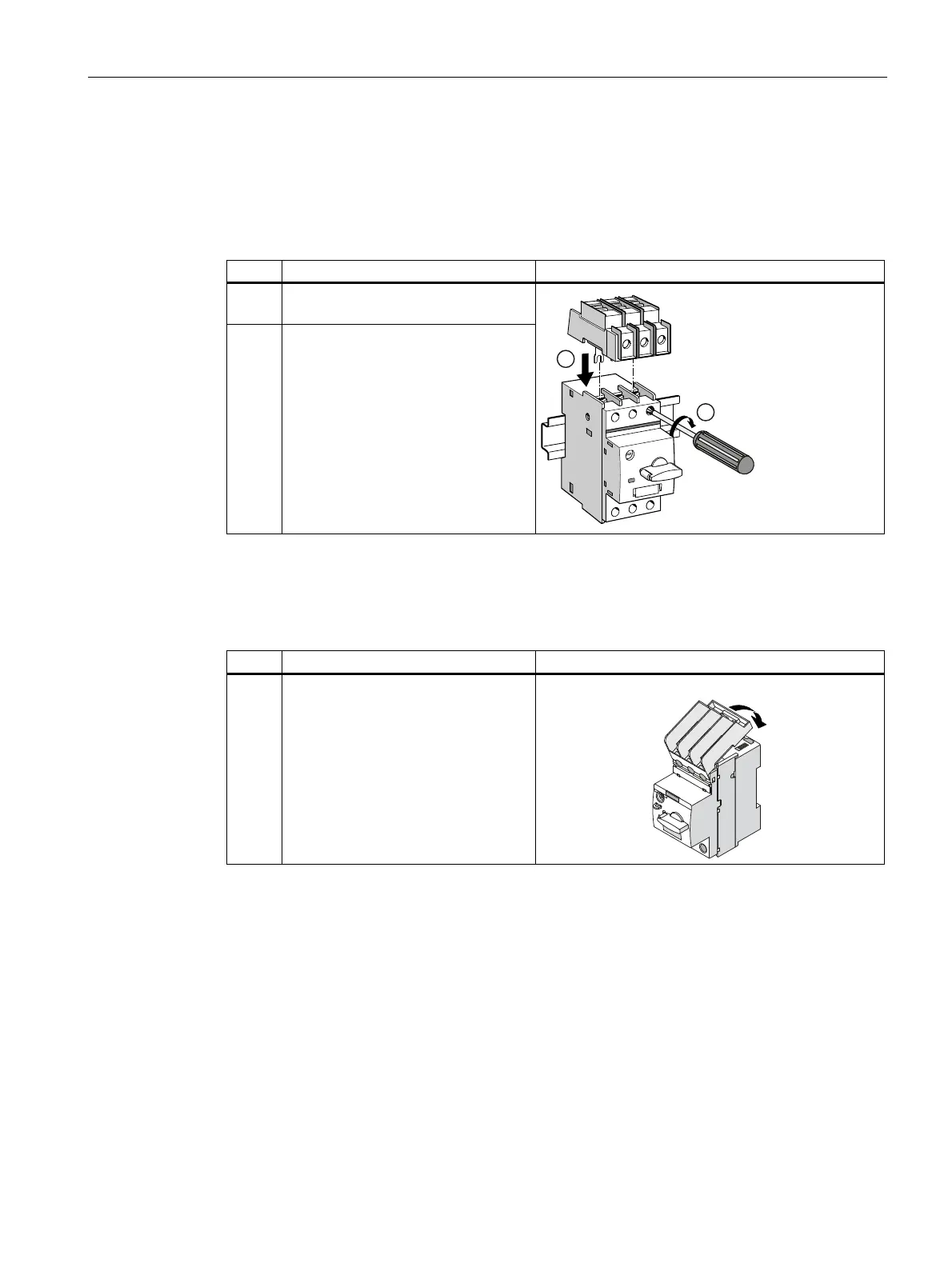

Table 4- 22 Mounting a UL 508 "type E" terminal
Step Operating instruction Figure
1 Attach the terminal to the motor
starter protector from above.
2 Screw the terminal tight by screwing
the main conductor terminals of the
motor starter protector tight.


4.9.7.3 Mounting phase barriers
Table 4- 23 Mounting phase barriers
Step Operating instruction Figure
1 Attach the phase barriers to the motor
starter protector from the front. Tilt
the phase barriers back and down
until they snap onto the motor starter
protector.
