SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
577
6.6.2.2 Load feeder with screw-type connection system
Mounting an S00 load feeder with screw-type connection system

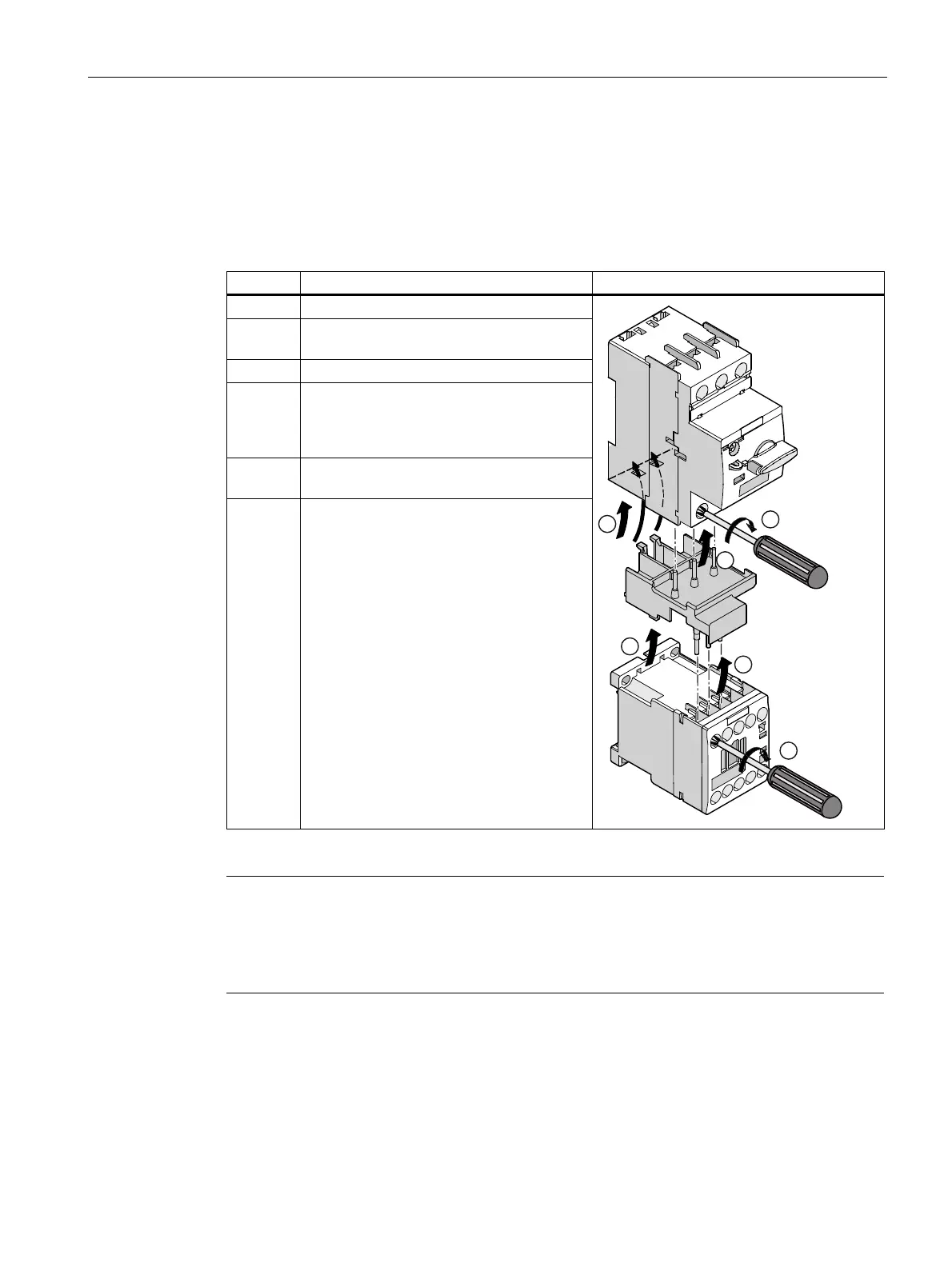

Table 6- 9 Mounting an S00 load feeder with screw-type connection system
Step Operating instruction Figure
1 Mount the link module on the contactor.
2 Insert the pins into the corresponding main
conductor terminals.
3 Screw the main conductor terminals tight.
4 Attach the contactor and the link module to
the bottom of the motor starter protector.
Insert the guide tabs into the slots on the
motor starter protector.
5 Insert the pins into the corresponding main
conductor terminals.
6 Screw the main conductor terminals tight.
Note
Mounting the S0 motor starter protector and S00 contactor with screw-type connection
system
The link module for the S00 load feeder can also be used to mount an S00 contactor on an
S0 motor starter protector.
