4.9.4.2 Mounting

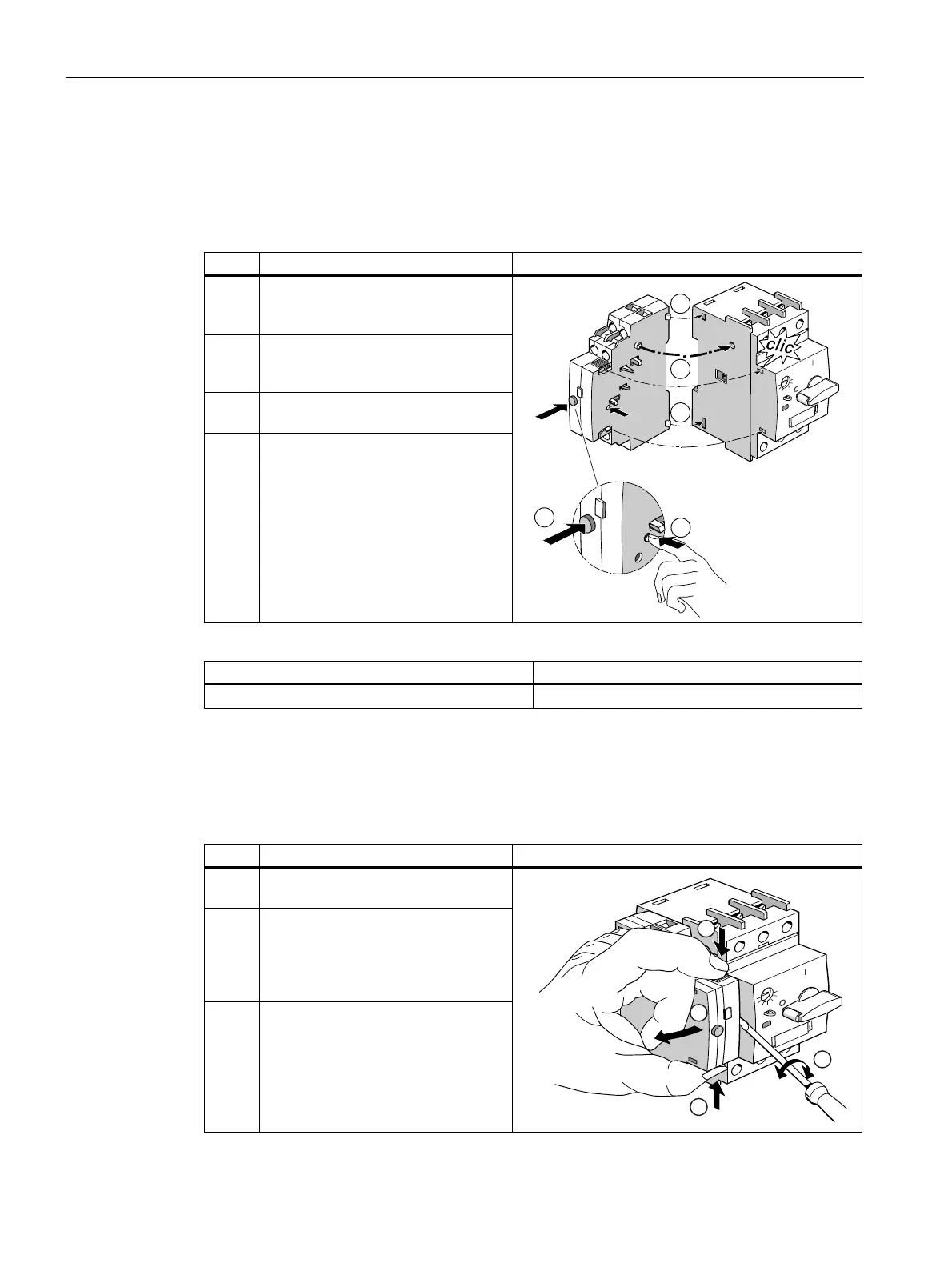

Mounting signaling switches
Table 4- 13 Mounting a signaling switch
Step Operating instruction Figure
1 Press and hold down the transport
lock on the inside of the signaling
switch.
2 Then also press the blue RESET
button on the front of the signaling
switch until it engages.
3 Attach the signaling switch to the rear
of the motor starter protector.
4 Press the signaling switch to the
motor starter protector until you hear
it engage.
Reference
More information ... Is available in ...
About connection the chapter titled Circuit diagrams (Page 482)
4.9.4.3 Disassembly
Disassembling signaling switches
Table 4- 14 Disassembling a signaling switch
Step Operating instruction Figure
1 Press the clips on the top and bottom
of the signaling switch together.
2 Run a screwdriver between the motor
starter protector and the signaling
switch. Dislodge the signaling switch
from the motor starter protector by
carefully turning the screwdriver.
3 Remove the signaling switch from the
side of the motor starter protector.
