SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
589
6.6.2.4 Load feeder with hybrid connection

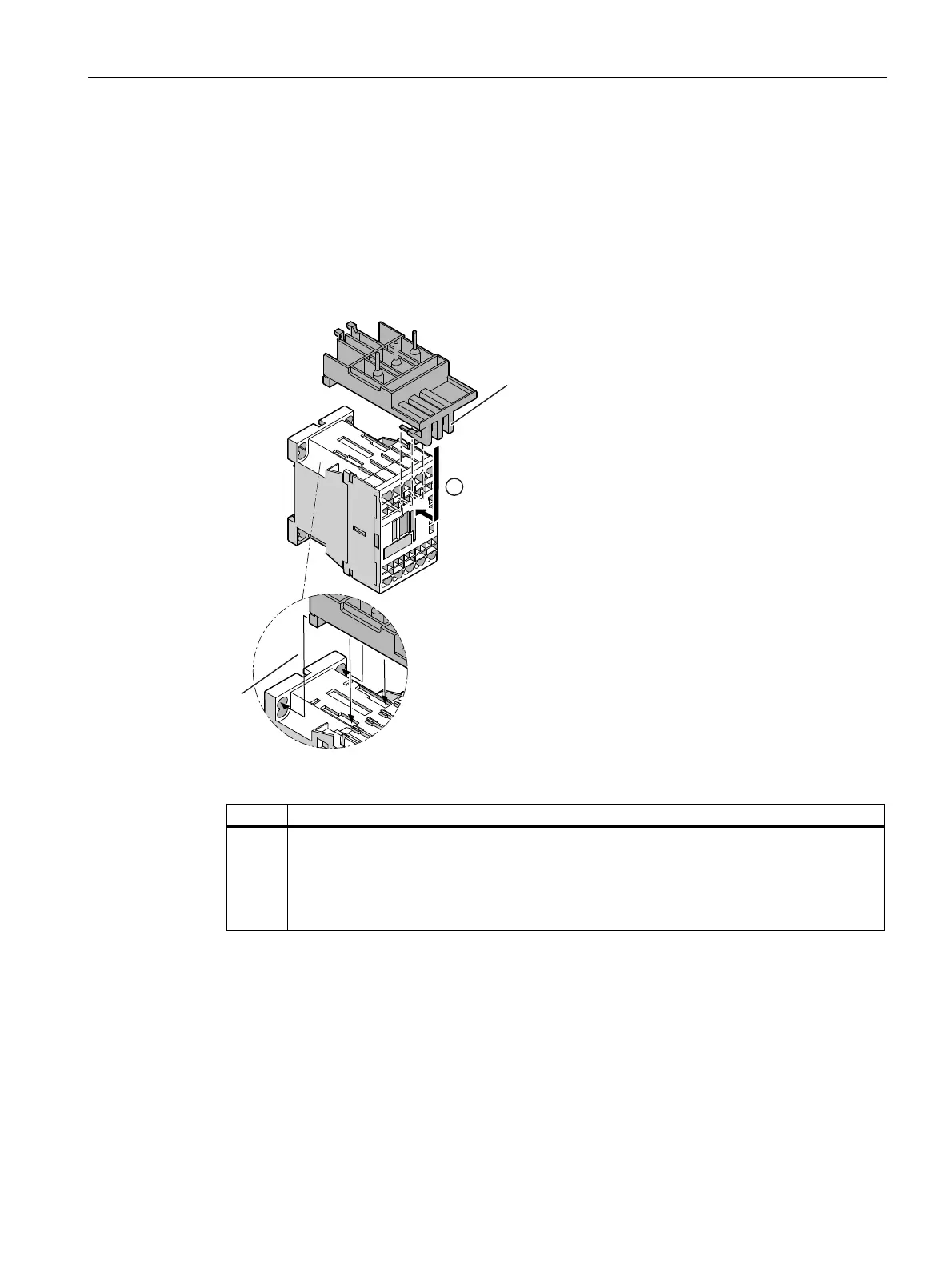

Mounting an S00 load feeder with hybrid connection system
D
F
Table 6- 17 Mounting an S00 load feeder with hybrid connection system
Step Operating instruction
1 Insert the connectors (a) on the link module into the corresponding main conductor
terminals (a) on the contactor. Make sure that the guide tabs are inserted into the slots on
the contactor.
Insert the guide tabs (c) into the corresponding slots at the same time.
The link module will sit flush with the contactor on the left- and right-hand sides.
