SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
433
4.9.9.2 Mounting
Various enclosures are available for the motor starter protectors.
Enclosure mounting

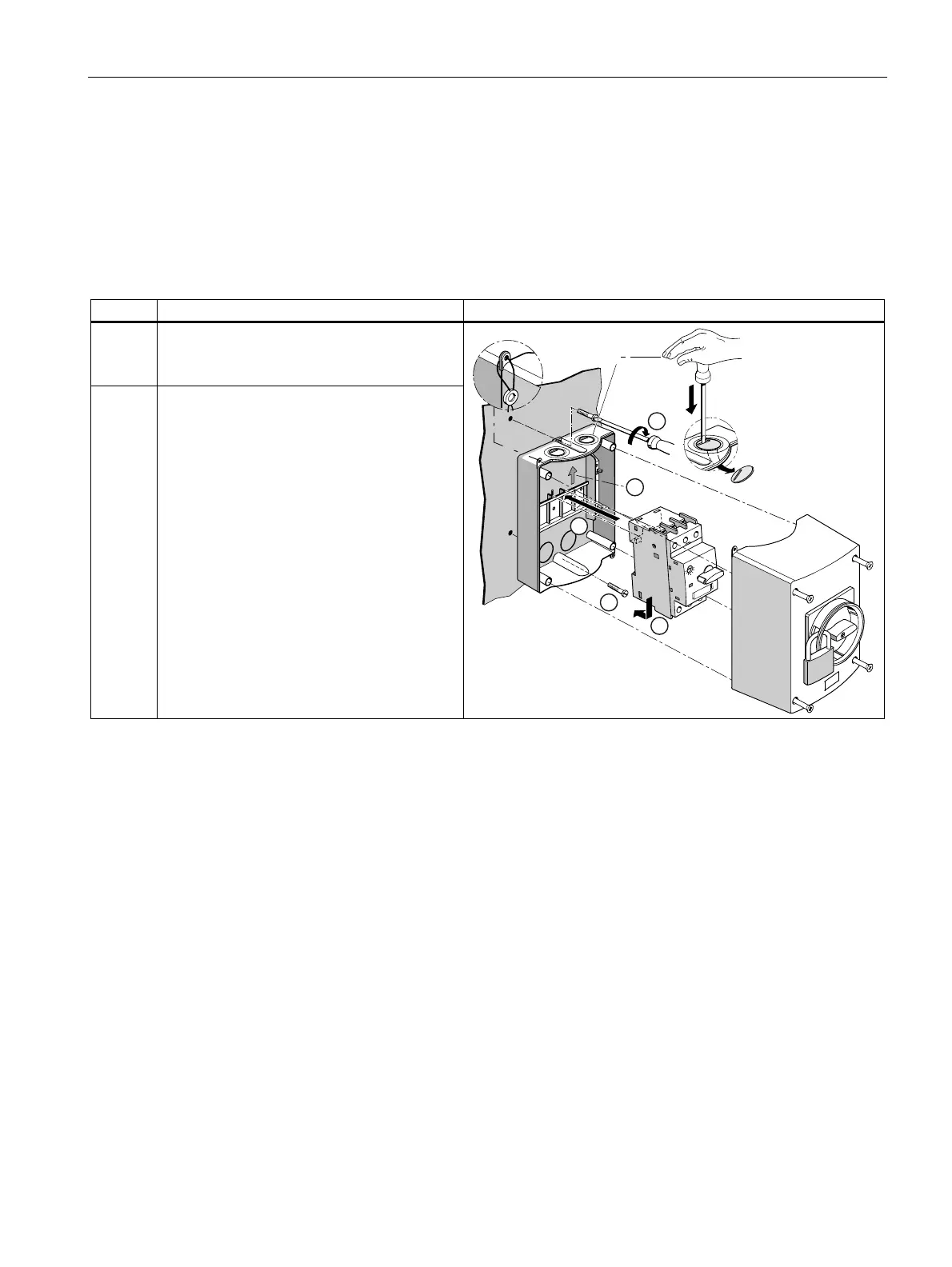

Table 4- 26 Mounting the enclosure
Step Operating instruction Figure
1 / 2 Mount the lower part of the enclosure on a
level surface.
Make sure that the arrow (A) is pointing up.
3 / 4 Snap the motor starter protector onto the rail
in the enclosure as illustrated in the diagram.
Next, screw the enclosure top part to the
lower part of the enclosure (tightening torque
1.2 to 1.5 Nm).
The enclosure can also be sealed with leads
on the bottom right and/or top left.
$
