2. Connect the SIMATIC bus connector for the following module group in the
SIWAREX if necessary.
3. Install the shielding strip under SIWAREX.
4. Hang the SIWAREX FTC in its place.
5. Fasten the SIWAREX FTC with 2 screws in the lower area of the module.
6. Label the SIWAREX FTC corresponding with your identification system.
4.4 Connection and Wiring
4.4.1 Connection Areas for SIWAREX FTC
The followi
ng connection areas are found on the front:
- Screw-in connector for 24 V power supply
- 40 pin connector for load cell connection, digital input and output, RS 485,
analogue output, counter input
- 9 pin D-sub socket for RS 232 to PC or printer connection

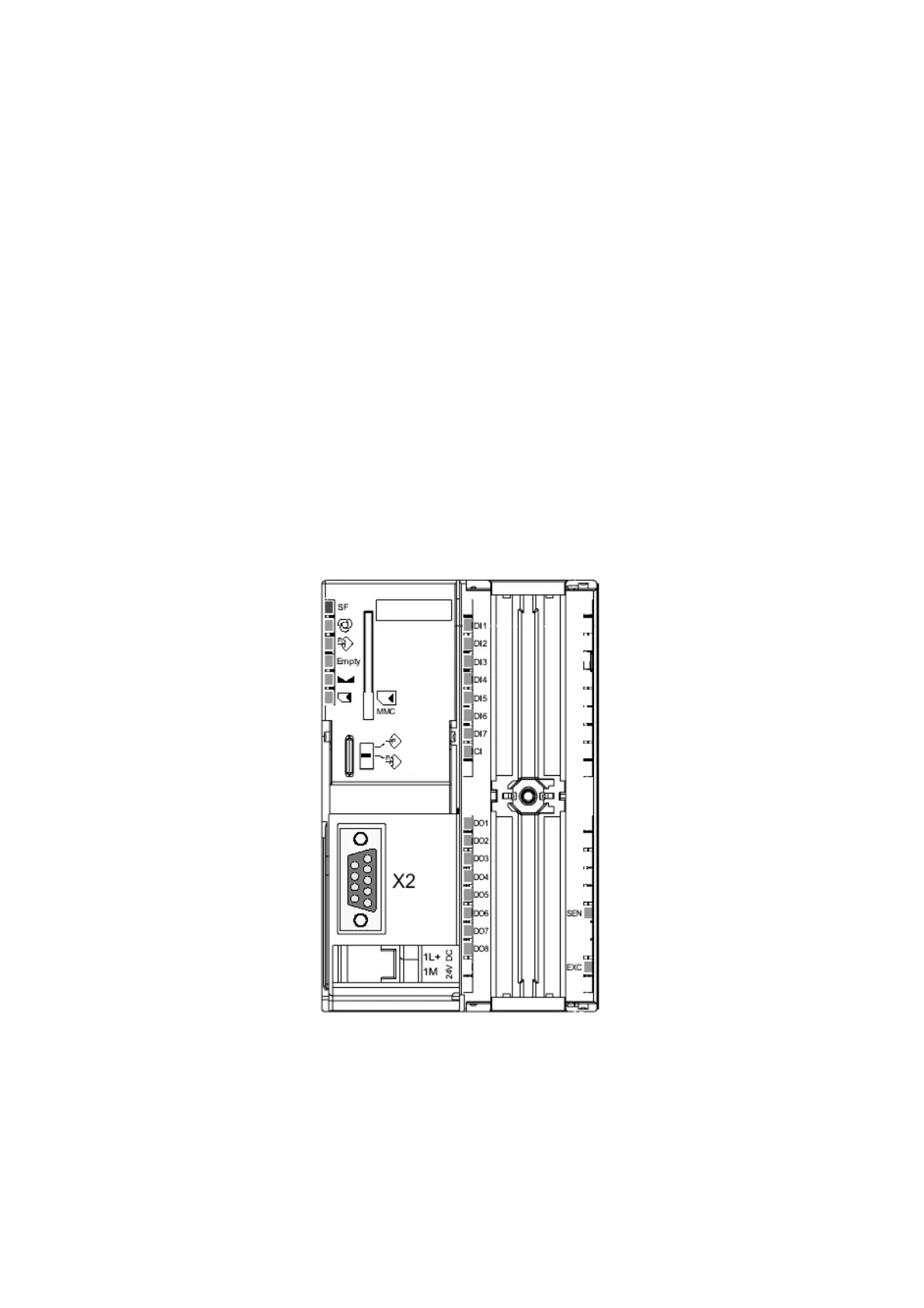

Figure 4-1
SIWAREX FTC front view
4-14 SIWAREX FTC
